Repair Procedures: Removal

Turn the ignition switch off and disconnect the battery (-) terminal.
Remove variable charge motion actuator connector (A) and three mounting bolts.
Remove intake manifold vacuum pipe (B) in order to secure work space.

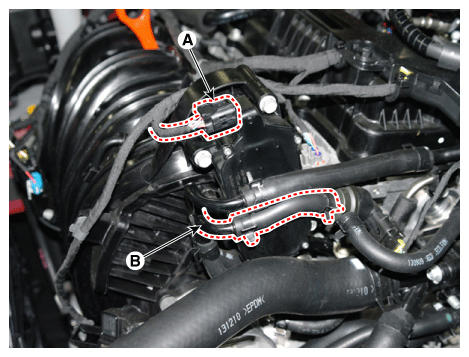

Fig 1: Removing Variable Charge Motion Actuator Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.

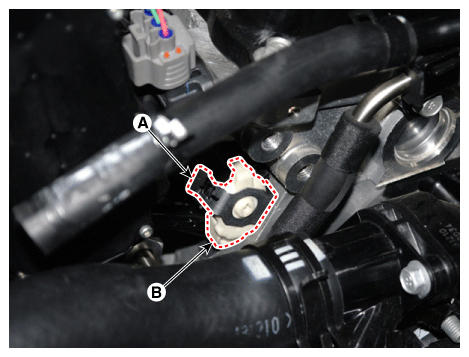

Fig 2: Removing VCMA Rod Clip

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: VCMA connection link can be damaged. So, make sure to remove it in a horizontal direction.
Make sure that groove part of the connection link (C) is pointing upward when mounting VCMA.
