Wave Form

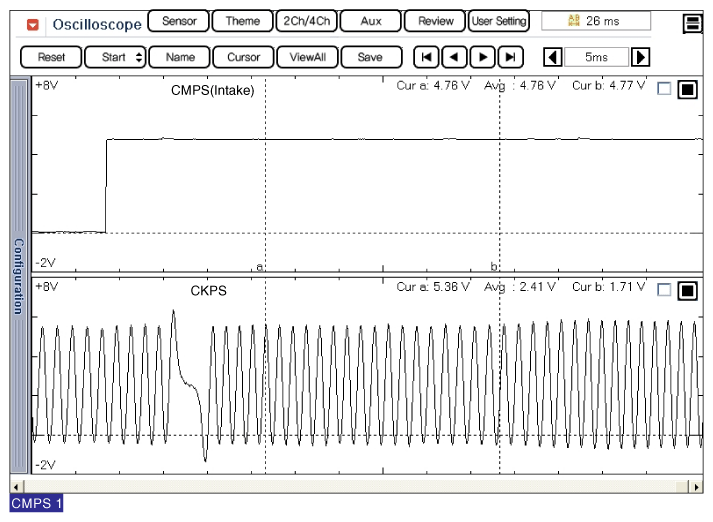

Fig 1: Scantool Display - Typical Crankshaft Position Sensor And Camshaft Position Sensor Waveform At Idle (1 Of 2)
G12140228Courtesy of KIA MOTORS AMERICA, INC.

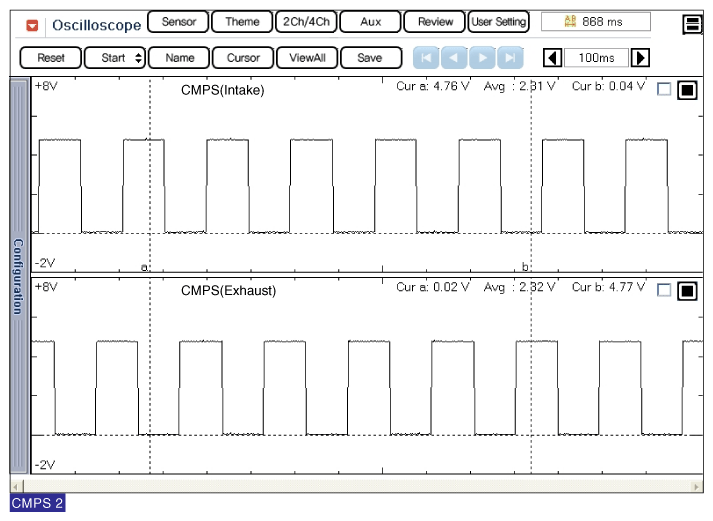

Fig 2: Scantool Display - Typical Crankshaft Position Sensor And Camshaft Position Sensor Waveform At Idle (2 Of 2)
G12140229Courtesy of KIA MOTORS AMERICA, INC.
