ETC (Electronic Throttle Control) System: Specifications: Specification: [TPS2]

[TPS2] SPECIFICATIONS

Item	Opening Percentage (%)	Output Voltage (V) [Vref = 5V]
C.T	87 - 93	4.35 - 4.65
W.O.T	6 - 11.4	0.3 - 0.57

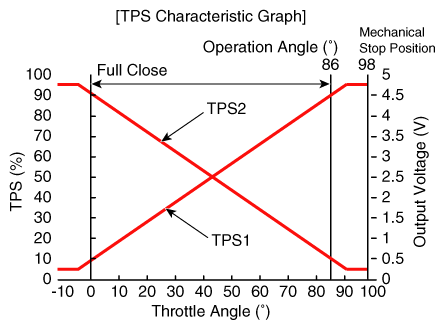

Fig 1: Throttle Position Sensor Characteristic Graph

Courtesy of KIA MOTORS AMERICA, INC.
