Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct (A).

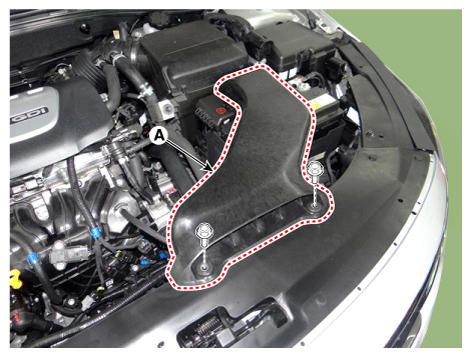

    Fig 1: Locating Air Duct With Bolts
    G12140319Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (C).
  4. Remove the RCV control solenoid valve (C) after loosening the mounting bolt.

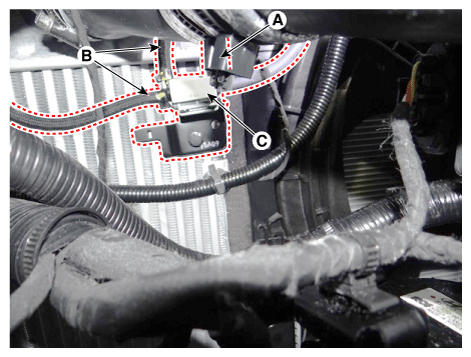

    Fig 2: Locating RCV Control Solenoid Valve, Connector And Vapor Hoses
    G12140320Courtesy of KIA MOTORS AMERICA, INC.
