Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) termnial.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

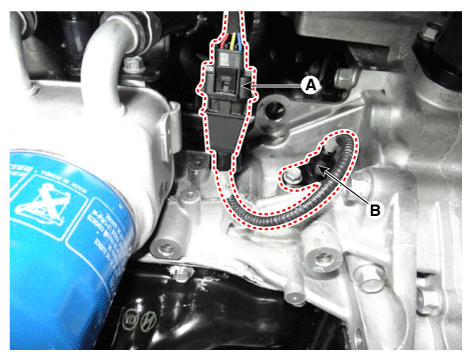

  3. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.

    Crankshaft position sensor installation bolt:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

G12347278
G12347279
