Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

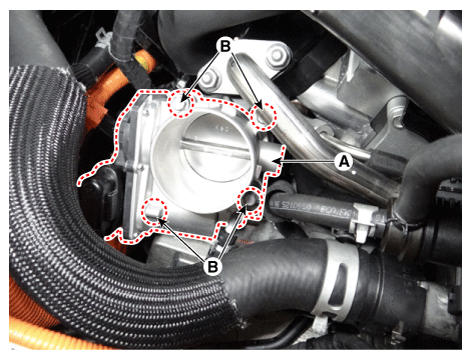

- Disconnect the ETC module connector (A).
- Disconnect the coolant hoses.
- Remove the installation bolts (B), and then remove the ETC module from the engine.
