Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold. (Refer to INTAKE MANIFOLD Engine Mechanical System - "Intanke Manifold")

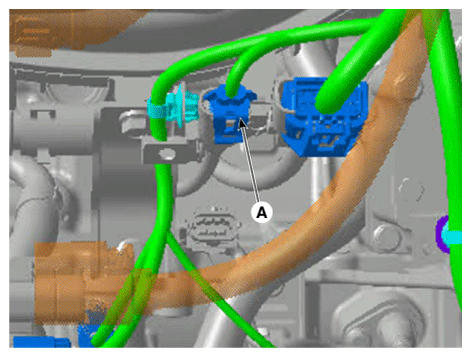

- Disconnect the knock sensor connector (A).

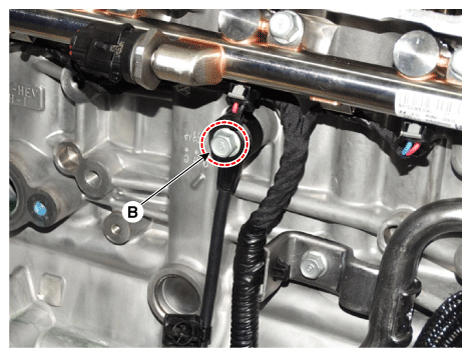

- Remove the installation bolt (B), and then remove the sensor from the cylinder block.
Knock sensor mounting bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
