Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

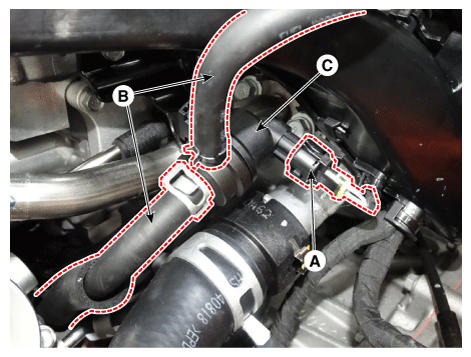

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the vapor hoses (B) from the purge control solenoid valve.
- Remove the purge control solenoid valve (C).
