Fuel Tank Pressure Sensor (FTPS)

FUEL TANK PRESSURE SENSOR (FTPS) SPECIFICATIONS

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V) [Vref = 5V]
-20 0.5
0 1.6
15 2.5
50 4.5

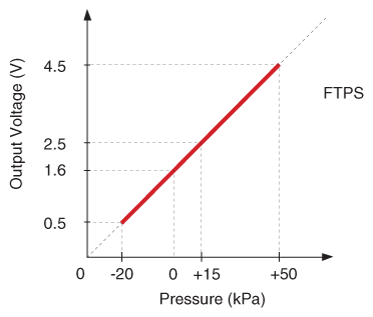

G12347202Courtesy of KIA MOTORS AMERICA, INC.
