Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the intercooler inlet pipe & hose assembly.
(Refer to Engine Mechanical System - "INTERCOOLER ")

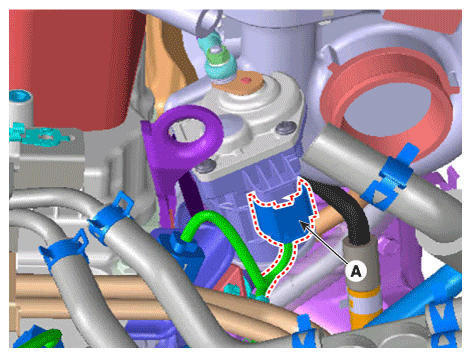

Disconnect the EWGA connector (A).

Fig 1: Disconnecting EWGA Connector
Courtesy of KIA MOTORS AMERICA, INC.

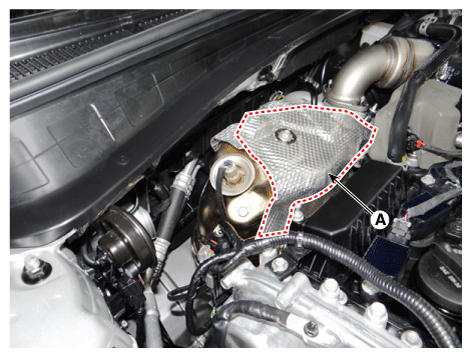

Remove the exhaust manifold heat protector (A) after loosening the mounting bolt.

Fig 2: Removing Exhaust Manifold Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.

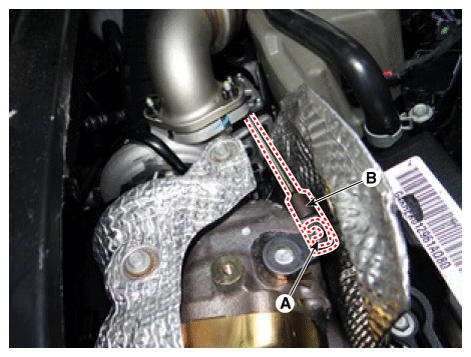

Remove the shaft link assembly (B) after removing the C-ring (A).

Fig 3: Removing Shaft Link Assembly
Courtesy of KIA MOTORS AMERICA, INC.

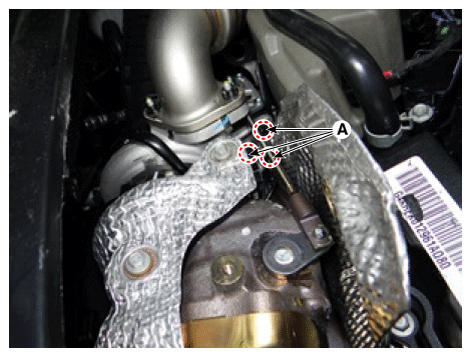

Remove the EWGA after removing the bolts (A).

Fig 4: Removing EWGA Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
