[Bank 1/Sensor 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

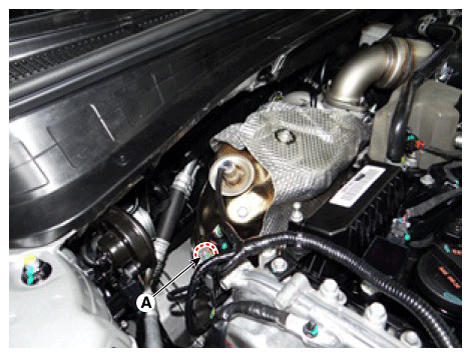

    Fig 1: Disconnecting Connector (Bank 1/Sensor 2)
    G12145736Courtesy of KIA MOTORS AMERICA, INC.

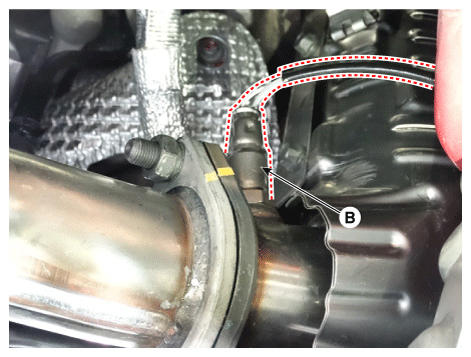

    Fig 2: Removing Sensor (Bank 1/Sensor 2)
    G12145737Courtesy of KIA MOTORS AMERICA, INC.
