Repair Procedures: Removal

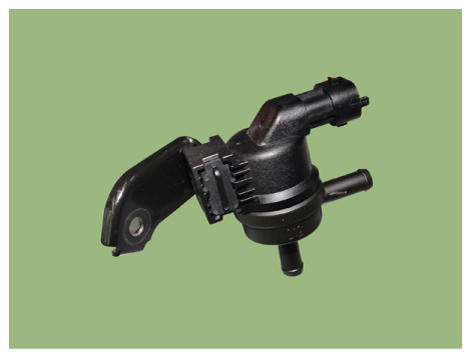

Fig 1: PCSV Connector
G12145780Courtesy of KIA MOTORS AMERICA, INC.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the RCV control solenoid valve (B) after loosening the solenoid mounting bolt (A).

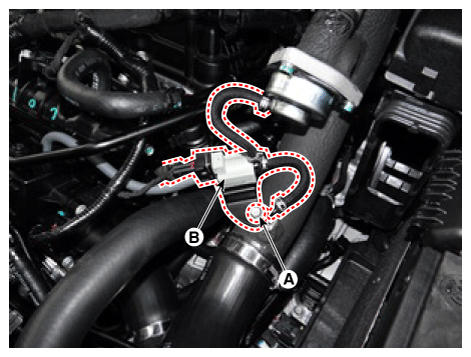

    Fig 2: Removing RCV Control Solenoid Valve
    G12145781Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the purge control solenoid valve mounting bolt (A).
  4. Remove the purge control solenoid valve (A) after disconnect the purge control solenoid valve connector (C) and vapor hoses (B).

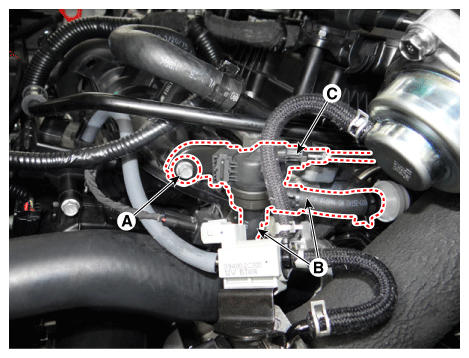

    Fig 3: Removing Purge Control Solenoid Valve Mounting Bolt
    G12145782Courtesy of KIA MOTORS AMERICA, INC.
