Circuit Diagram

(M/T)

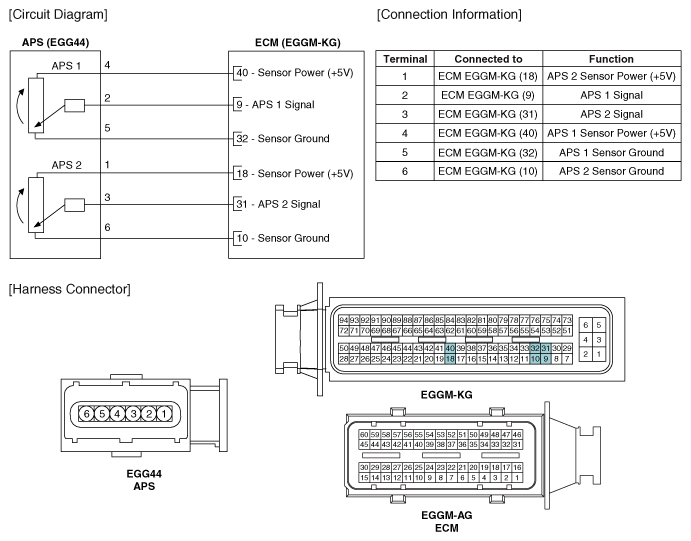

Fig 1: Accelerator Position Sensor Circuit (M/T)
G11845176Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

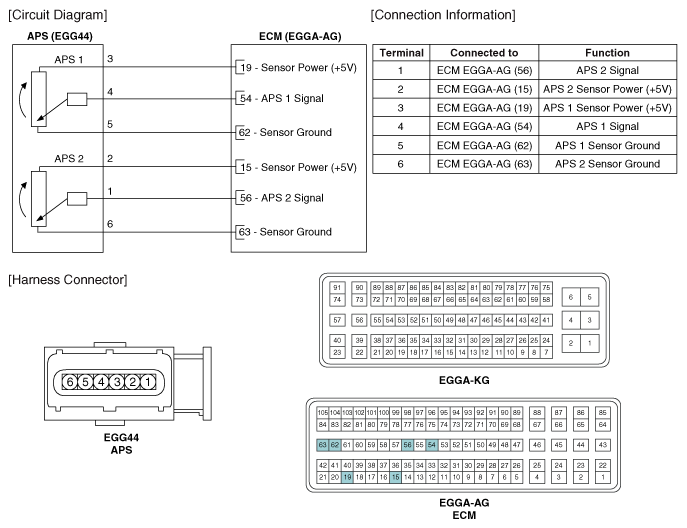

Fig 2: Accelerator Position Sensor Circuit (A/T)
G11845177Courtesy of KIA MOTORS AMERICA, INC.
