Circuit Diagram

(M/T)

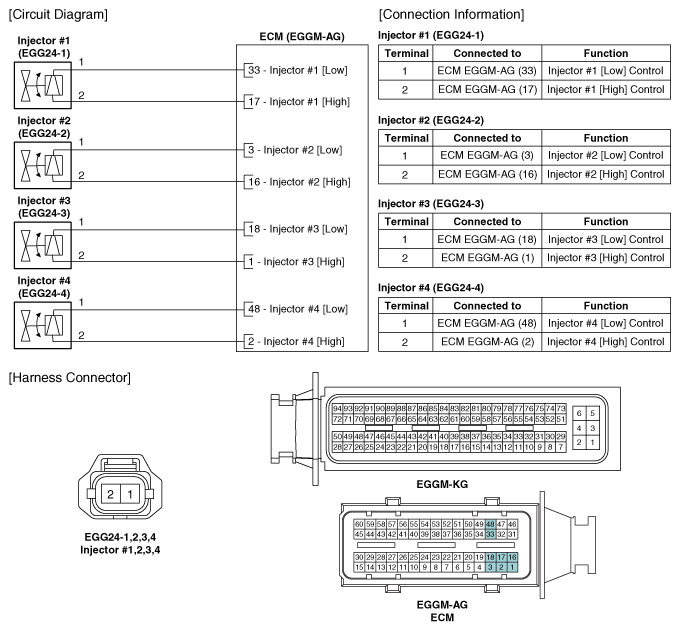

Fig 1: Injector Circuit (M/T)
G11845186Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

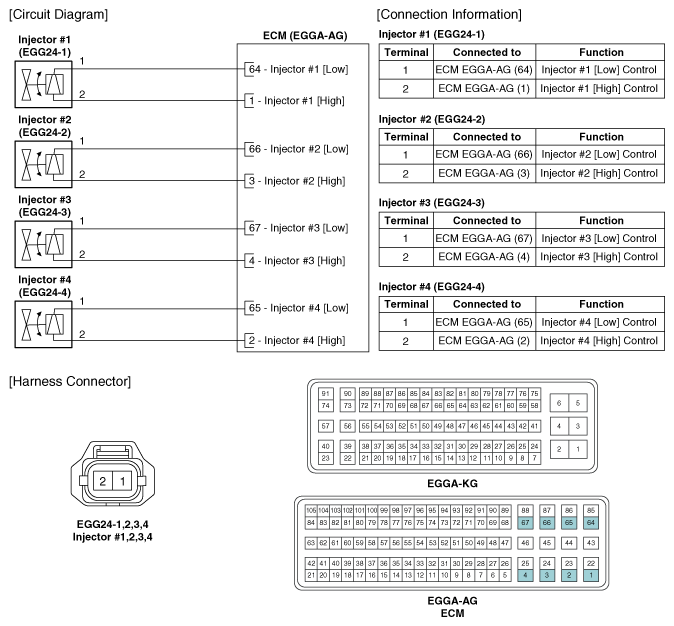

Fig 2: Injector Circuit (A/T)
G11845187Courtesy of KIA MOTORS AMERICA, INC.
