Circuit Diagram

(M/T)

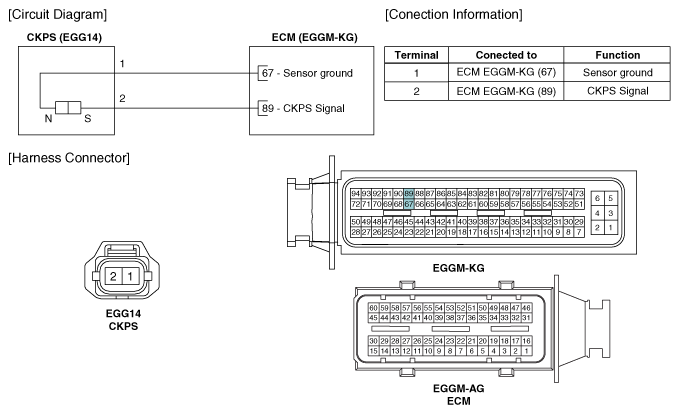

Fig 1: CKPS Circuit (M/T)
G11845143Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

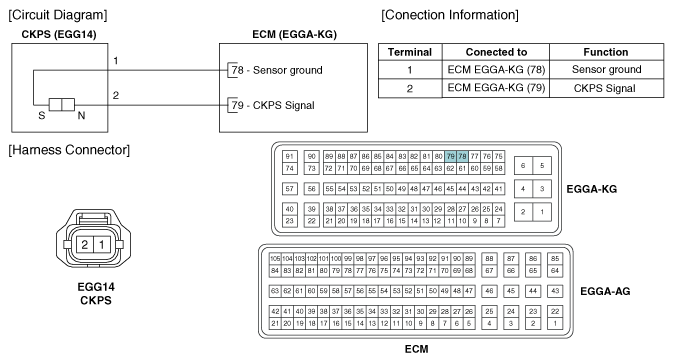

Fig 2: CKPS Circuit (A/T)
G11845144Courtesy of KIA MOTORS AMERICA, INC.
