Circuit Diagram

(M/T)

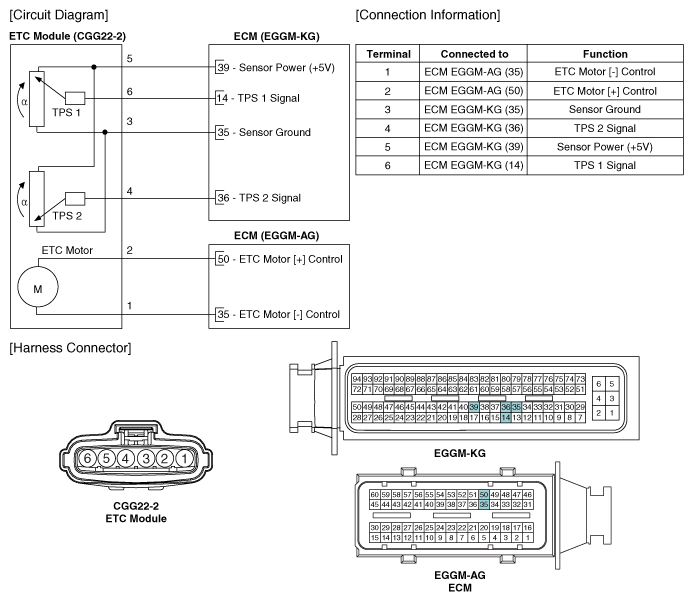

Fig 1: ETC Motor Circuit (M/T)
G11845121Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

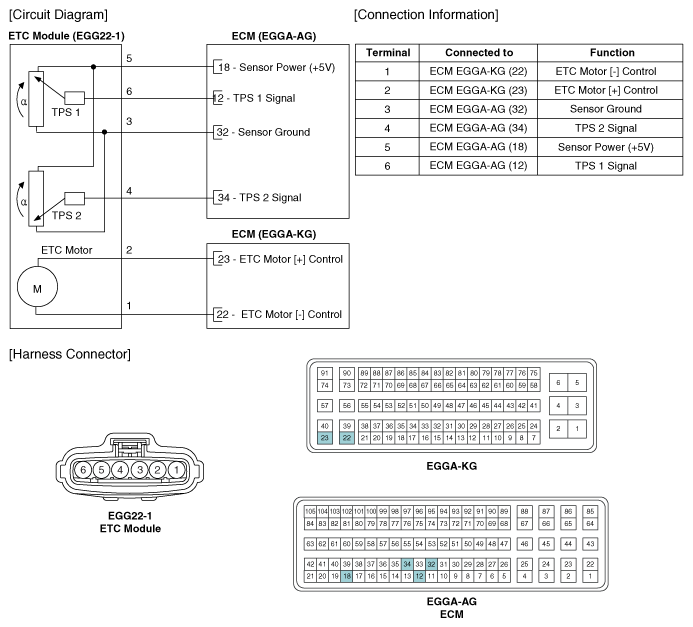

Fig 2: ETC Motor Circuit (A/T)
G11845122Courtesy of KIA MOTORS AMERICA, INC.
