Fuel Tank Pressure Sensor (FTPS)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram
(M/T)

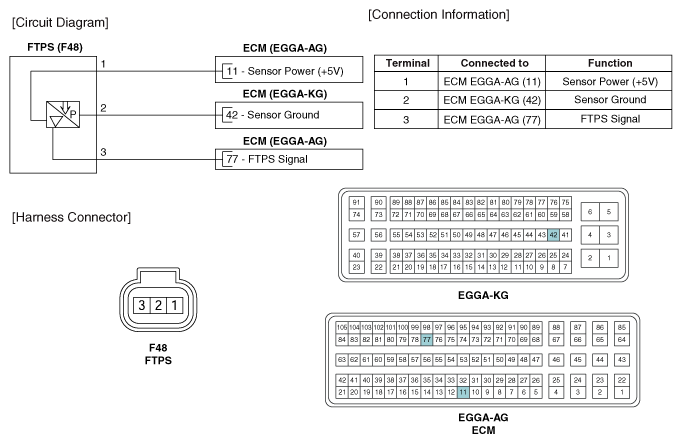

Fig 1: Fuel Tank Pressure Sensor Circuit (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

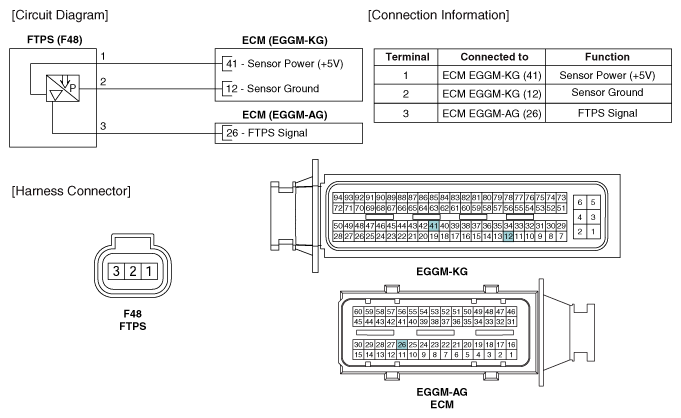

Fig 2: Fuel Tank Pressure Sensor Circuit (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
