Circuit Diagram

(M/T)

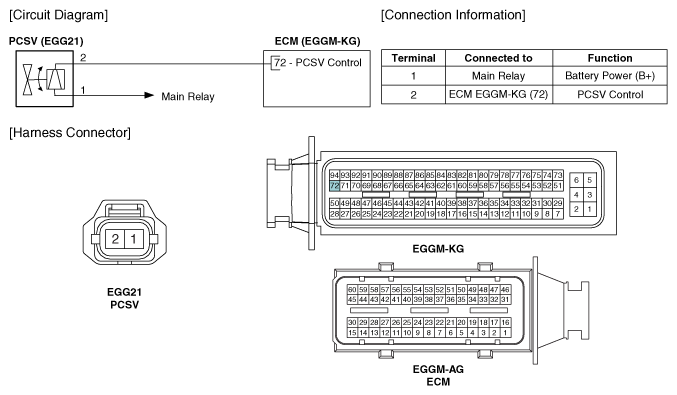

Fig 1: Purge Control Solenoid Valve Circuit (M/T)
G11845205Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

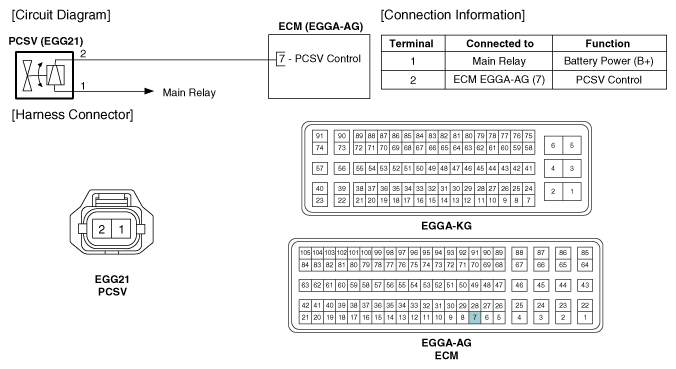

Fig 2: Purge Control Solenoid Valve Circuit (A/T)
G11845206Courtesy of KIA MOTORS AMERICA, INC.
