Circuit Diagram

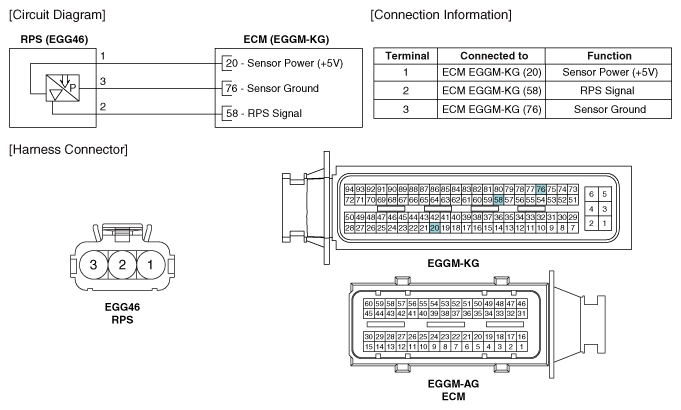

(M/T)

Fig 1: Rail Pressure Sensor Circuit (M/T)
G11845171Courtesy of KIA MOTORS AMERICA, INC.

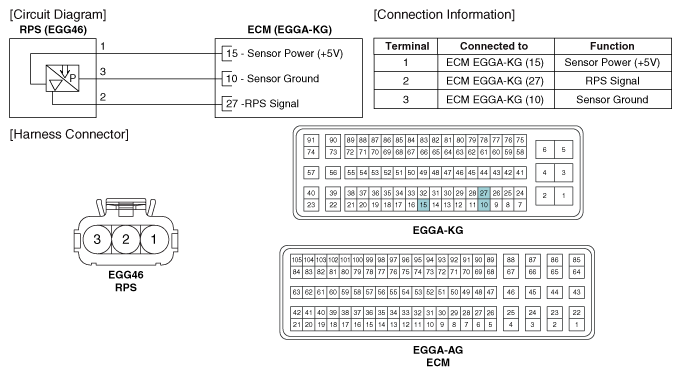

(A/T)

Fig 2: Rail Pressure Sensor Circuit (A/T)
G11845172Courtesy of KIA MOTORS AMERICA, INC.
