Repair Procedures: Inspection

Remove the crash pad side switch assembly (A) from the switch panel on the crash pad of the driver's side.

Fig 1: Locating Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ISG switch (A) from the switch assembly.

Fig 2: Removing ISG Switch From Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between the switch 2 and 3 terminals as the ISG OFF switch is engaged.

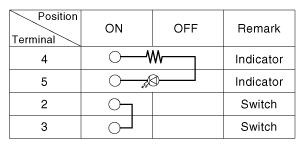

Fig 3: Switch 2 And 3 Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
