Components Location

[Vehicle Components]

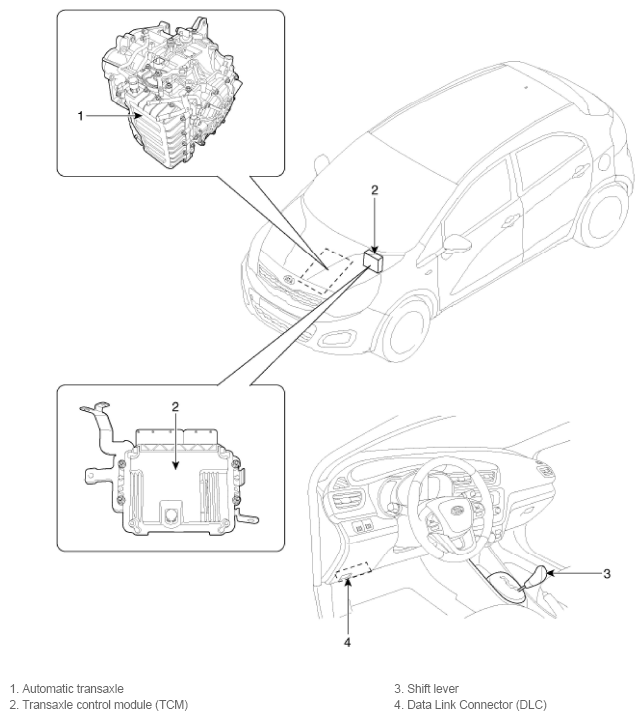

Fig 1: Locating Vehicle Components
G11845487Courtesy of KIA MOTORS AMERICA, INC.

[Transaxle Components]

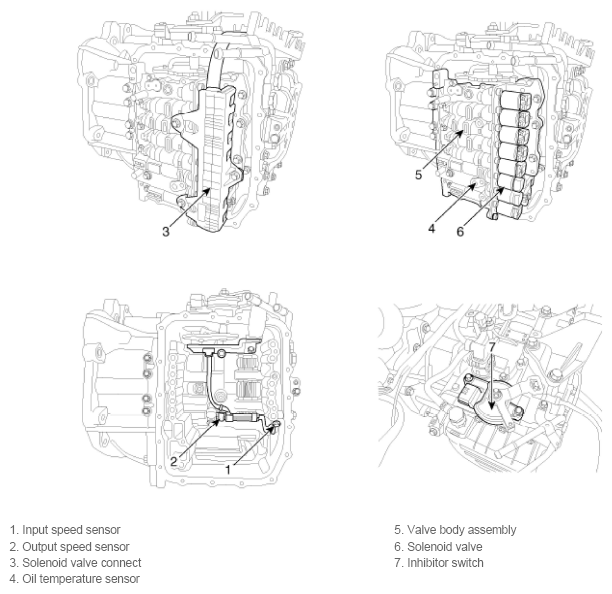

Fig 2: Locating Transaxle Components
G11845488Courtesy of KIA MOTORS AMERICA, INC.
