Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket (A) must be replaced with new one. (Do not reuse it.)

  Fig 1: Locating Existing Valve Body Cover Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform the procedures below after replacing the solenoid valve.
  1. Refill the automatic transaxle with fluid.
    (Refer to Hydraulic System - "FLUID ")
  2. Reset the automatic transaxle adaptive values using the GDS.

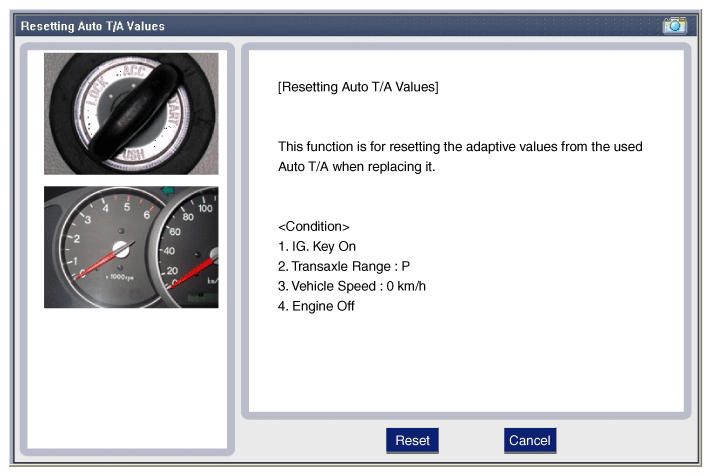

    Fig 2: Scantool Display - Reset Automatic Transaxle Adaptive Values
    Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.
    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
  4. Confirm that there is no fluid leakage on connections after repairing.
