Description And Operation: Description

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

Fig 1: Identifying Spark Plug
G12273555Courtesy of KIA MOTORS AMERICA, INC.

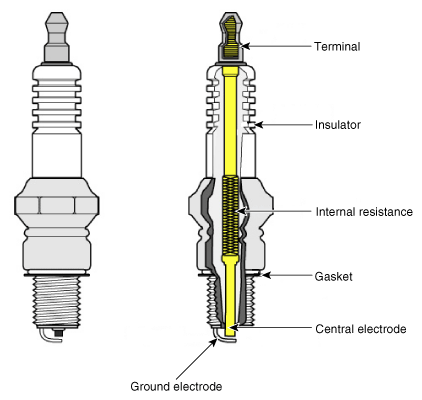

Fig 2: Locating Terminal, Insulator, Inner Resistance, Gasket, Central & Ground Electrode
G12273556Courtesy of KIA MOTORS AMERICA, INC.
