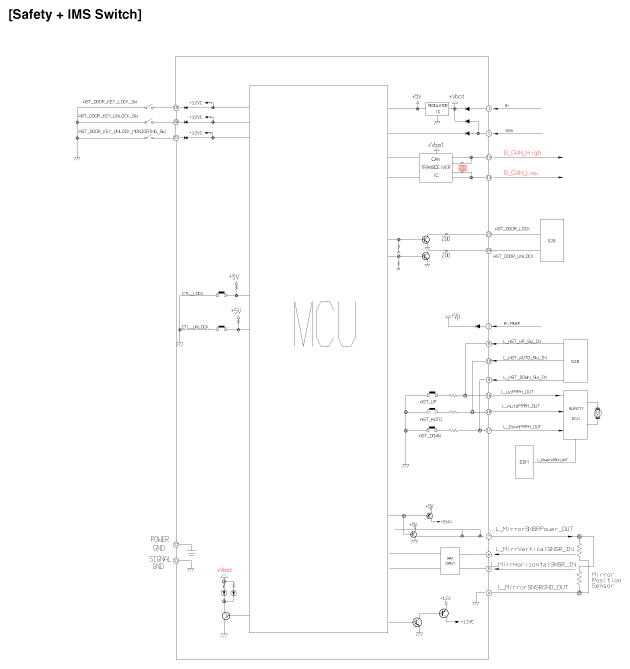

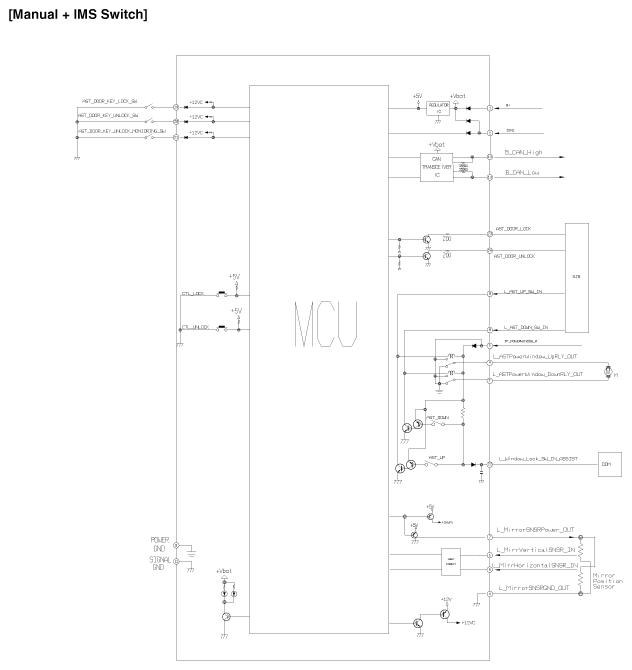

Home >> Kia >> 2017 >> Sorento L >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Assist Power Window Switch >> Assist Power Window Module (ADM)
