Driver Power Window Module

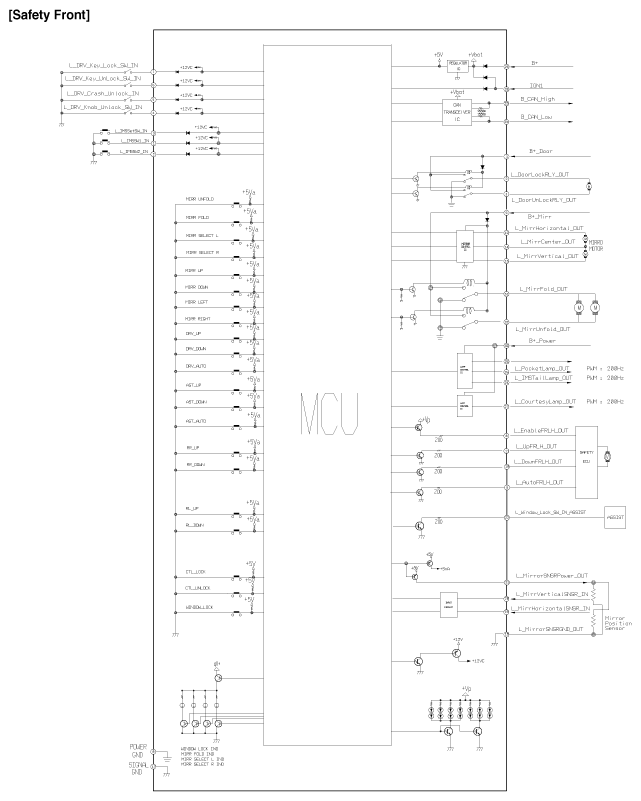

Fig 1: Driver Power Window Module Circuit Diagram (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

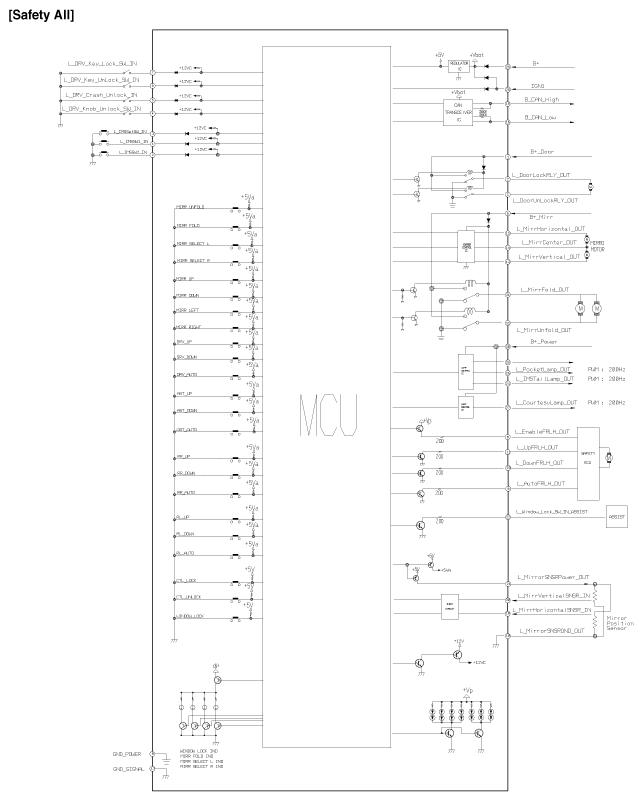

Fig 2: Driver Power Window Module Circuit Diagram (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

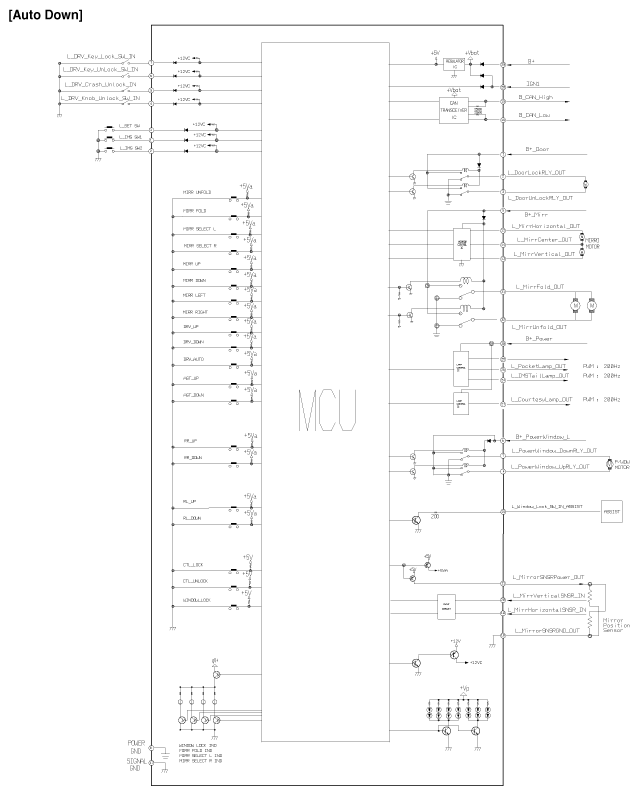

Fig 3: Driver Power Window Module Circuit Diagram (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Driver Power Window Module Circuit Diagram (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
