Components Location

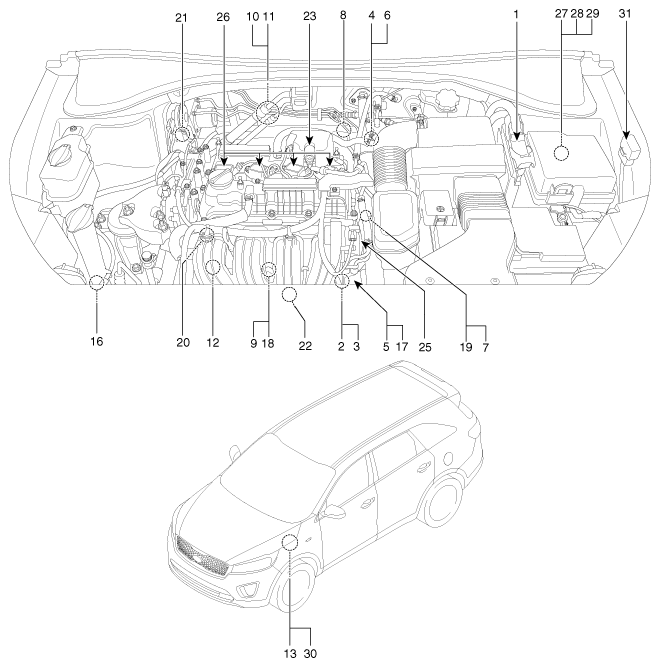

Fig 1: Engine Control System Components (1 Of 8)

G12180168

Courtesy of KIA MOTORS AMERICA, INC.

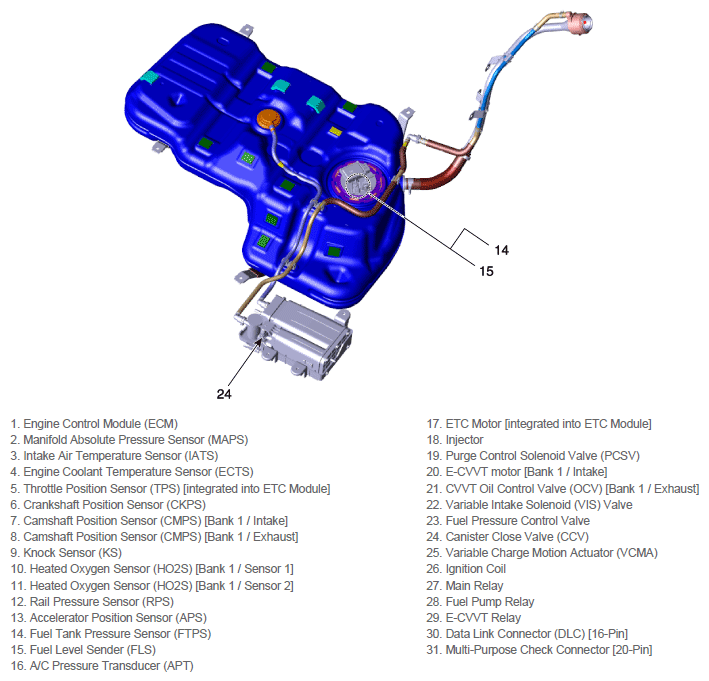

Fig 2: Engine Control System Components (2 Of 8)

G12180169

Courtesy of KIA MOTORS AMERICA, INC.

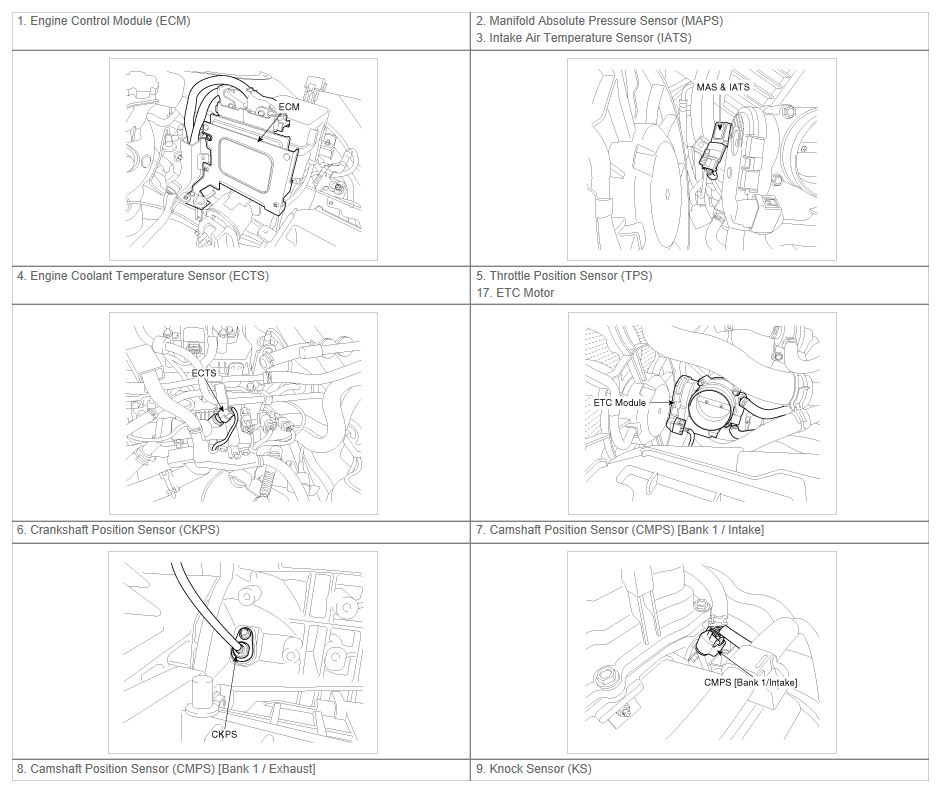

Fig 3: Engine Control System Components (3 Of 8)

G12180170

Courtesy of KIA MOTORS AMERICA, INC.

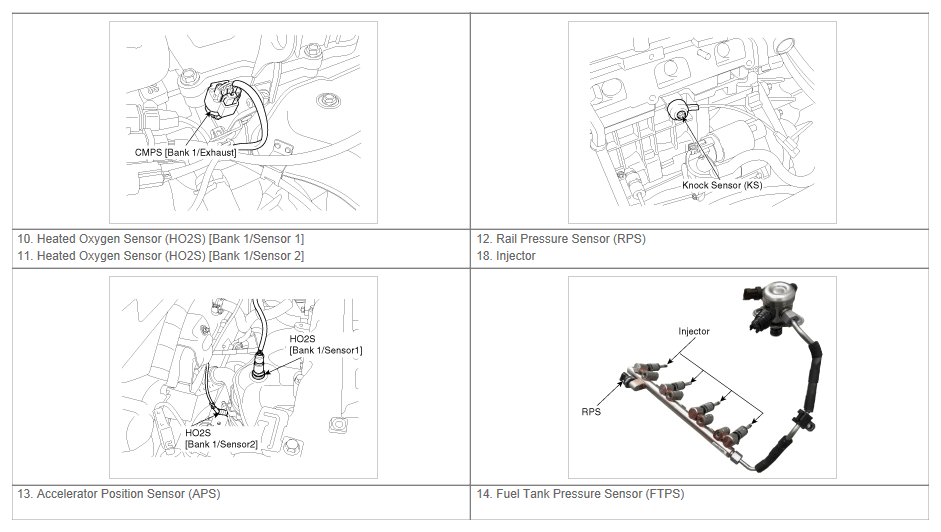

Fig 4: Engine Control System Components (4 Of 8)

G12180171

Courtesy of KIA MOTORS AMERICA, INC.

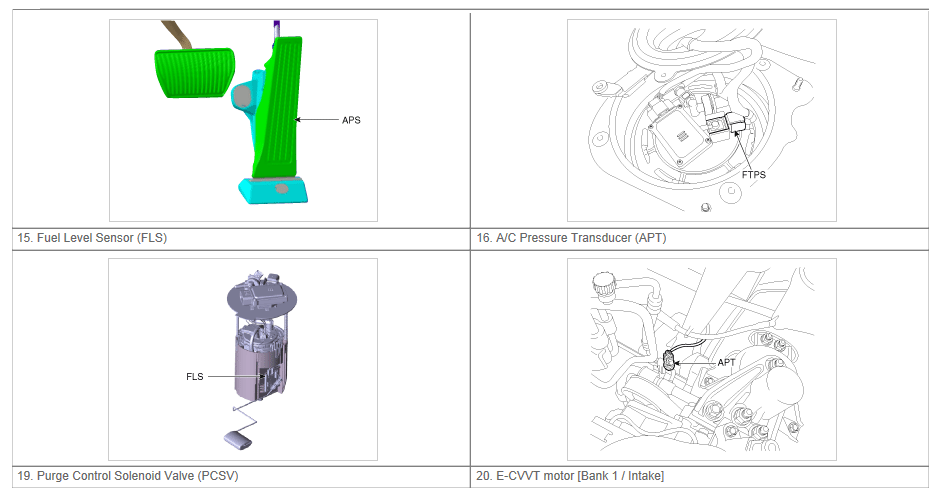

Fig 5: Engine Control System Components (5 Of 8)

G12180172

Courtesy of KIA MOTORS AMERICA, INC.

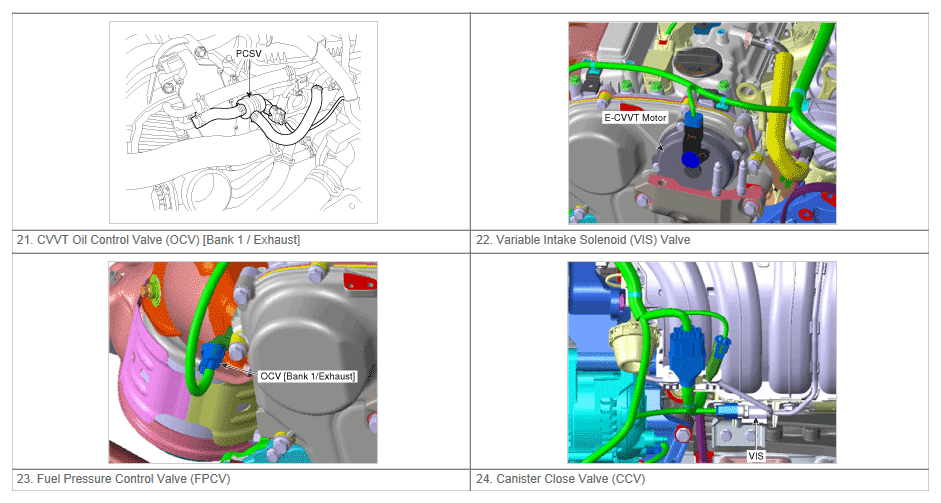

Fig 6: Engine Control System Components (6 Of 8)

G12180173

Courtesy of KIA MOTORS AMERICA, INC.

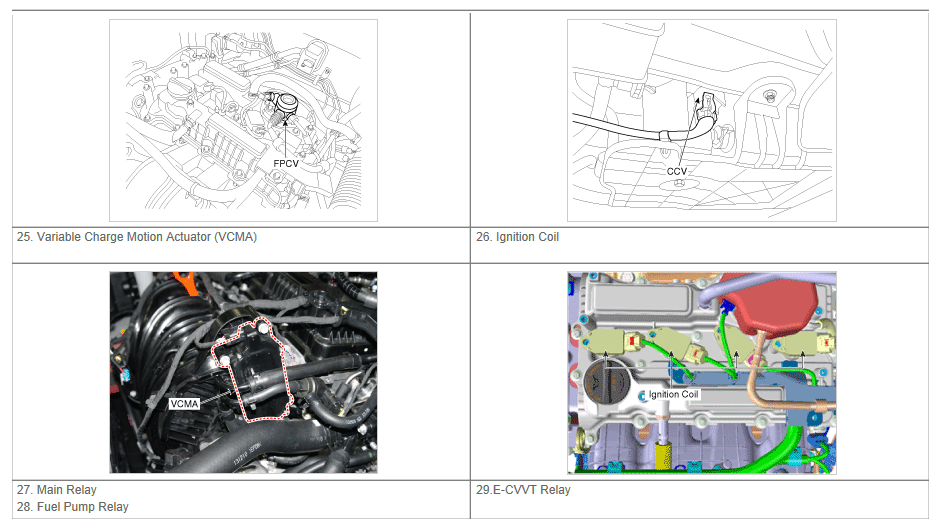

Fig 7: Engine Control System Components (7 Of 8)

G12180174

Courtesy of KIA MOTORS AMERICA, INC.

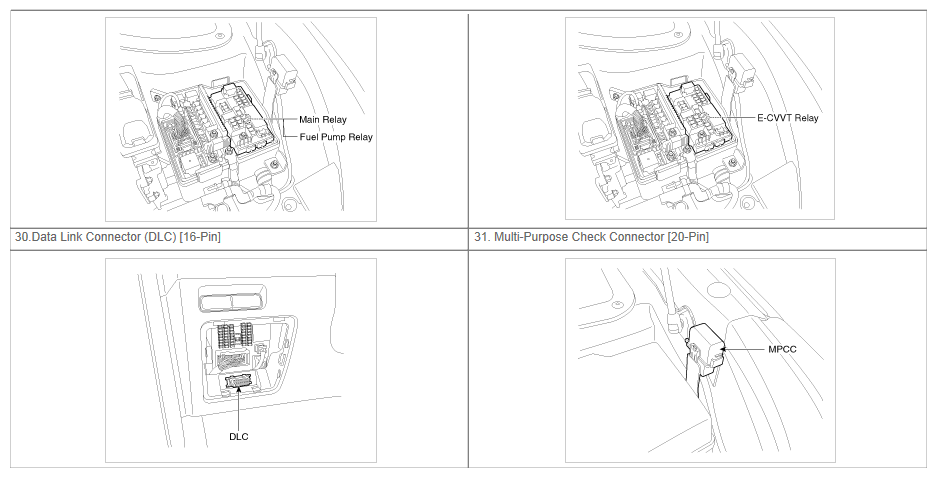

Fig 8: Engine Control System Components (8 Of 8)

G12180175
