Kia
>>
2017
>>
Sorento L
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition System - 2.4L
>>
Ignition Coil
>>
Schematic Diagrams
>>
Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector View

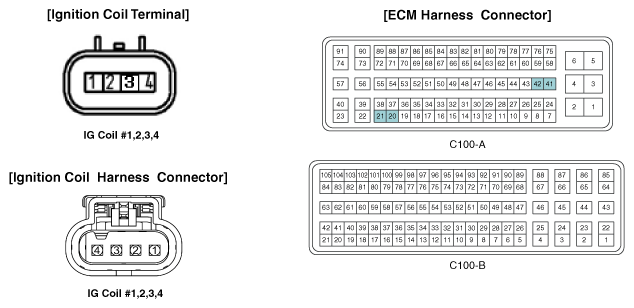

Fig 1: Ignition Coil Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
