Components and Components Location: Components

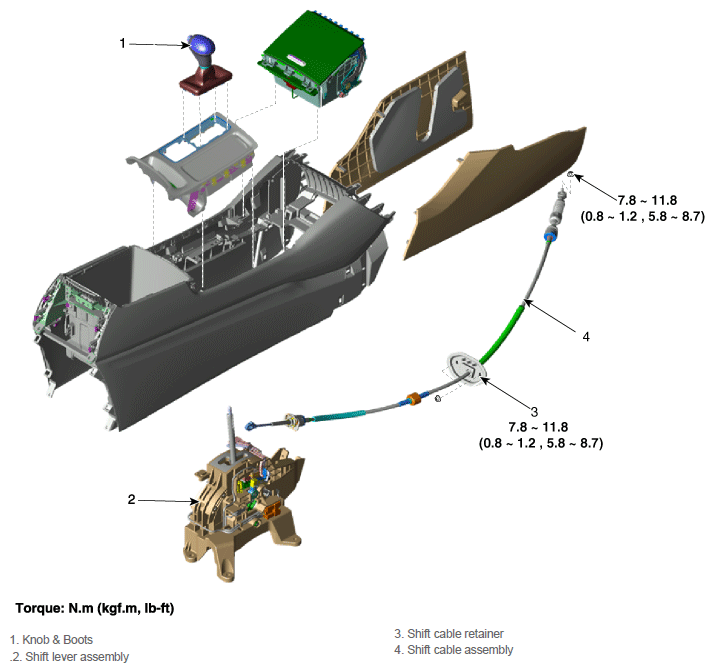

Fig 1: Shift Cable Components With Torque Specification
G12180603Courtesy of KIA MOTORS AMERICA, INC.
