Circuit Diagram: Notes

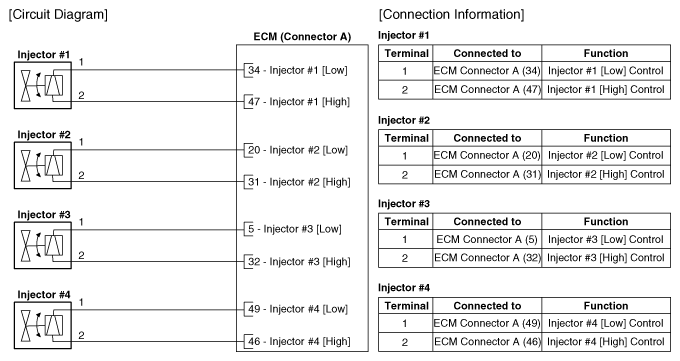

Fig 1: Injector Circuit Diagram

G12238659

Courtesy of KIA MOTORS AMERICA, INC.
