Wave Form

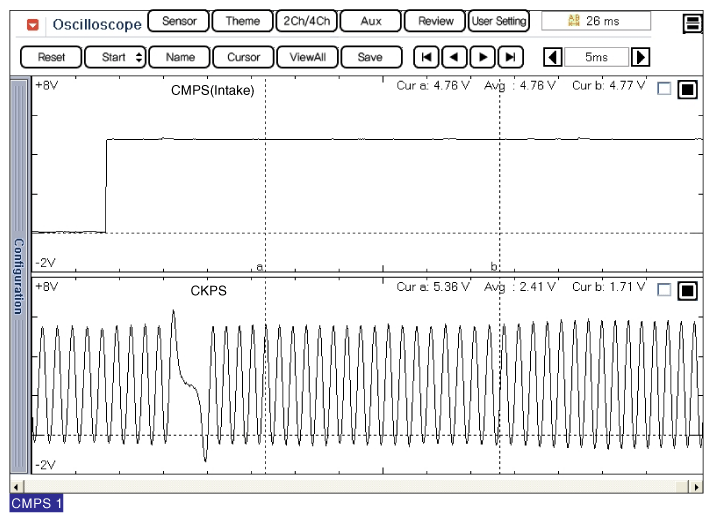

Fig 1: Scantool Display - Signal Waveform Of CKPS And CMPS (1 Of 2)
G12239121Courtesy of KIA MOTORS AMERICA, INC.

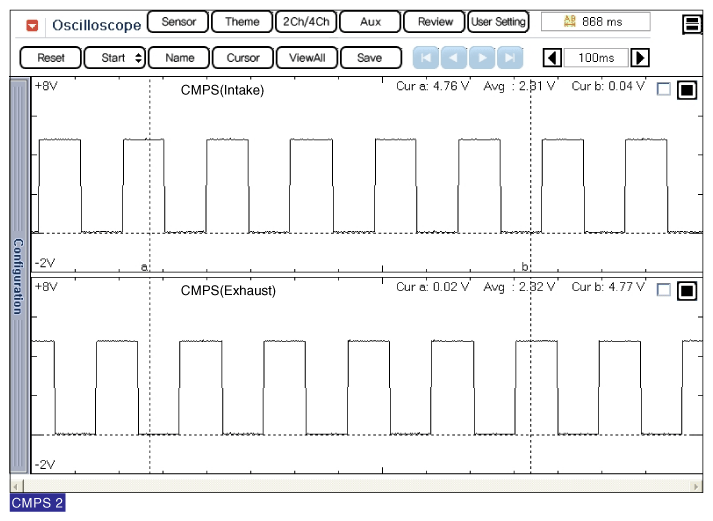

Fig 2: Scantool Display - Signal Waveform Of CKPS And CMPS (2 Of 2)
G12239122Courtesy of KIA MOTORS AMERICA, INC.
