Components And Components Location: Components

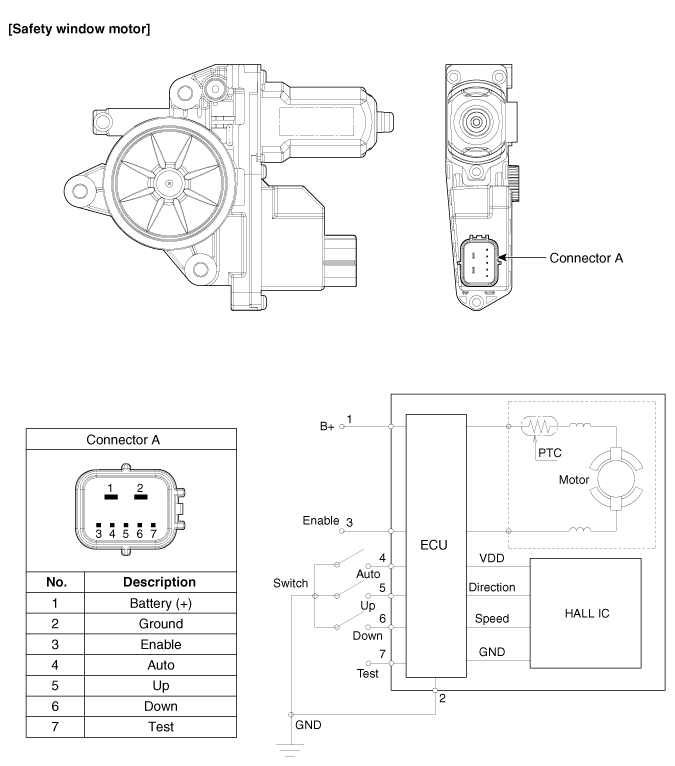

Fig 1: Power Window Motor Circuit Diagram And Connector End View (1 Of 2)
G12235806Courtesy of KIA MOTORS AMERICA, INC.

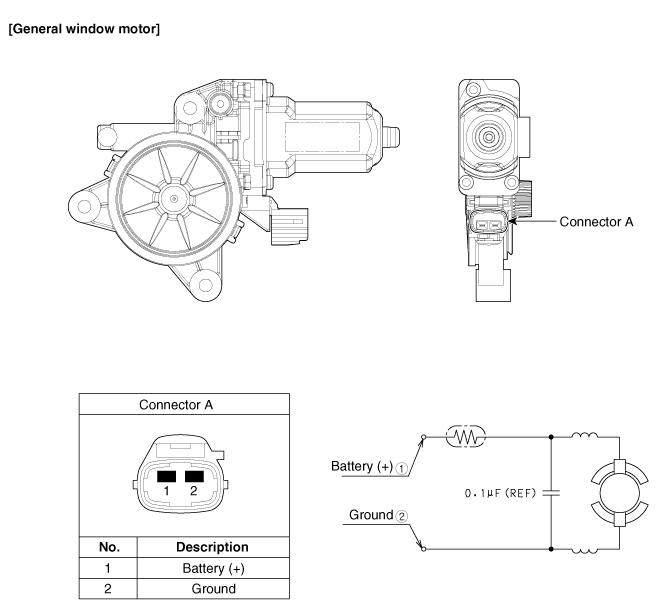

Fig 2: Power Window Motor Circuit Diagram And Connector End View(2 Of 2)
G12235807Courtesy of KIA MOTORS AMERICA, INC.
