Wave Form

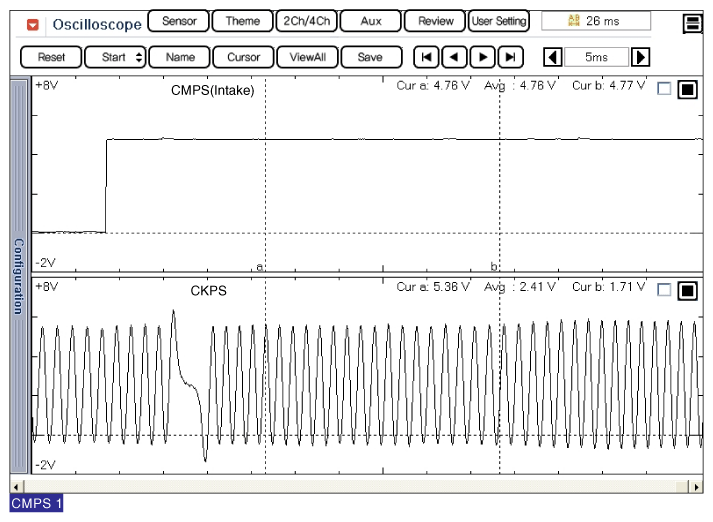

Fig 1: Scantool Display - Camshaft Position Sensor 1 Waveform
G12227251Courtesy of KIA MOTORS AMERICA, INC.

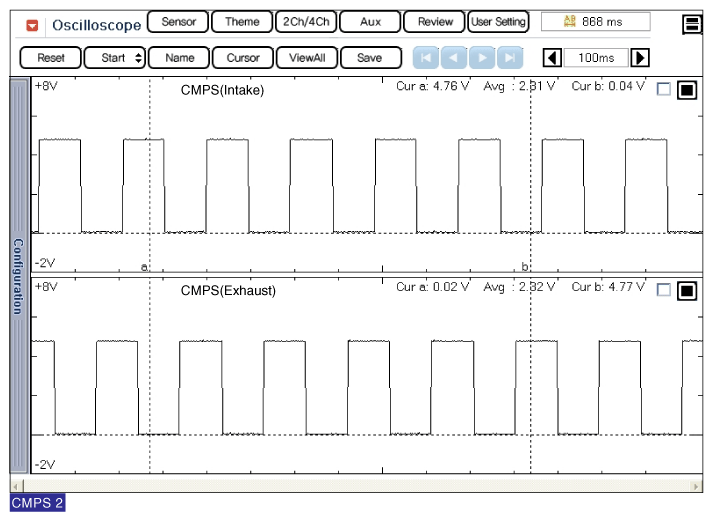

Fig 2: Scantool Display - Camshaft Position Sensor 2 Waveform
G12227252Courtesy of KIA MOTORS AMERICA, INC.
