Circuit Diagram: (A/T)

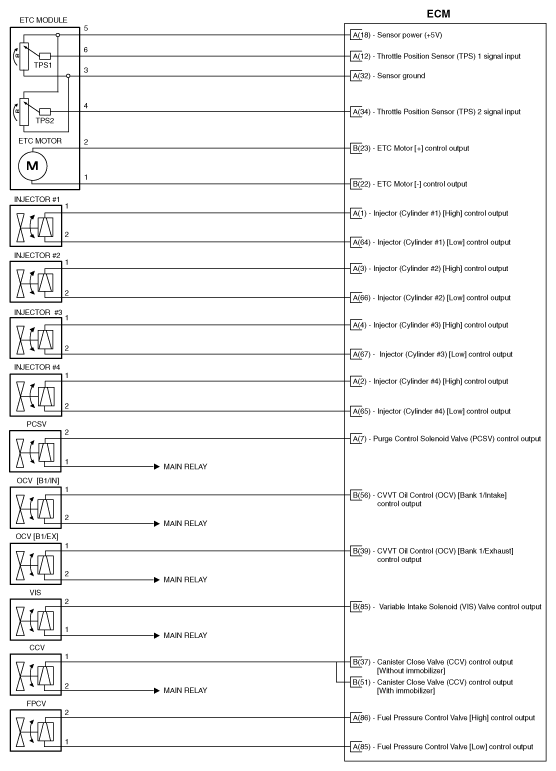

Fig 1: Engine Control Module Circuit Diagram - A/T (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

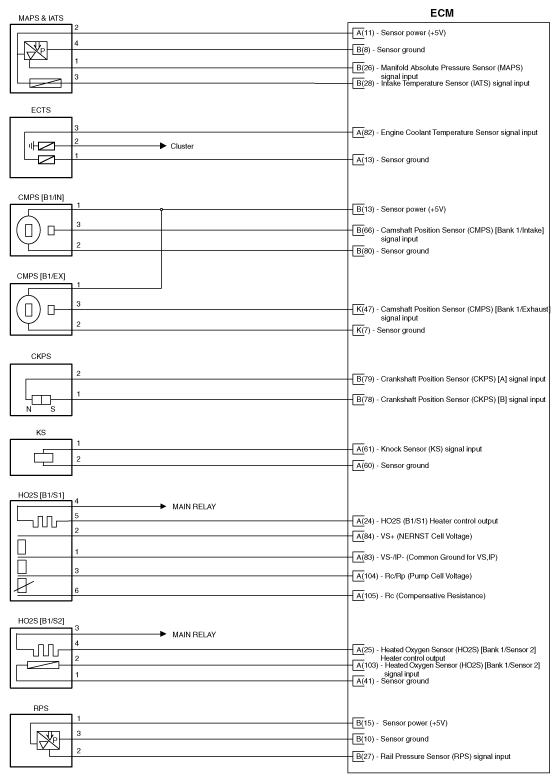

Fig 2: Engine Control Module Circuit Diagram - A/T (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

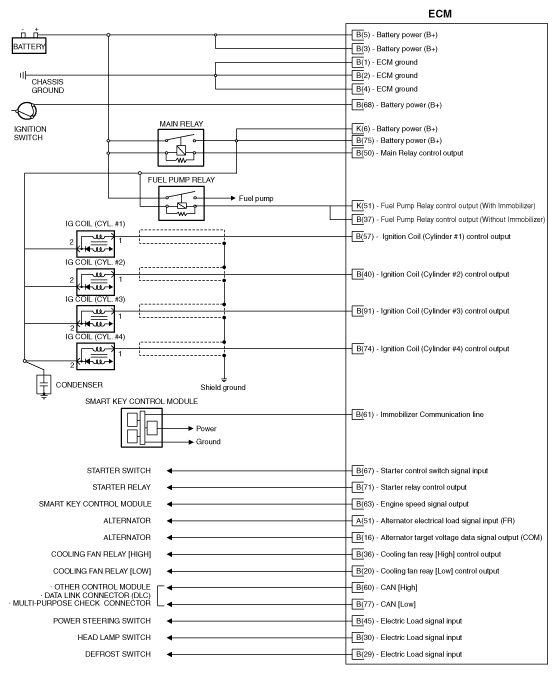

Fig 3: Engine Control Module Circuit Diagram - A/T (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

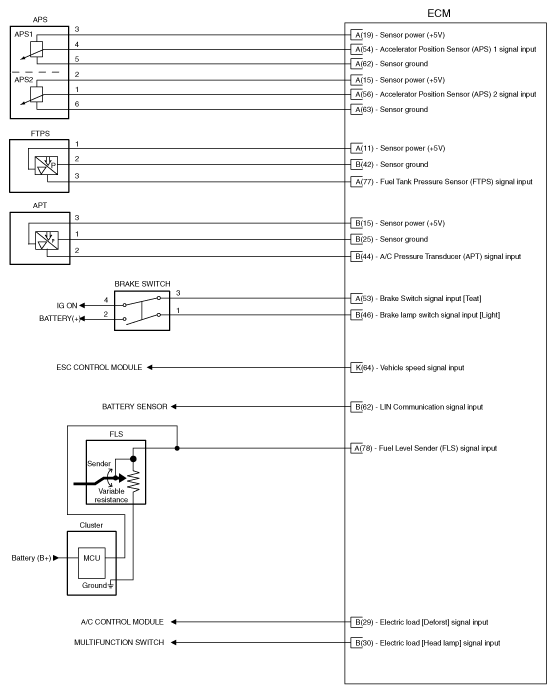

Fig 4: Engine Control Module Circuit Diagram - A/T (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
