Inhibitor Switch: Troubleshooting

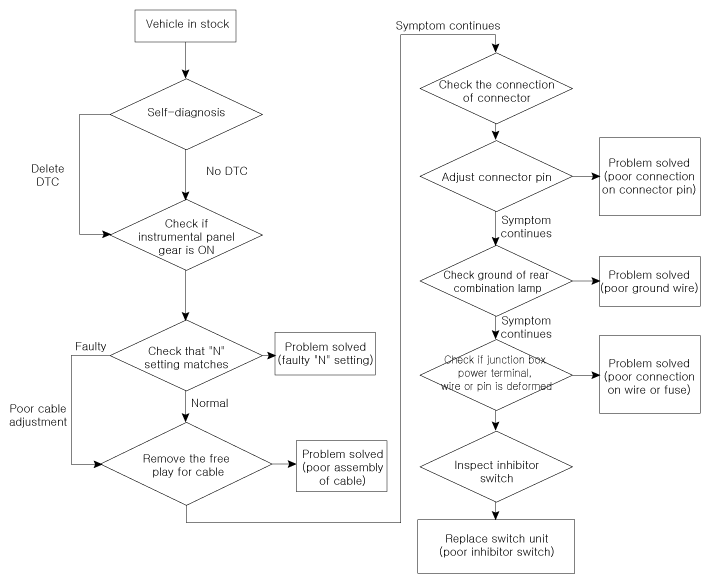

Fig 1: Inhibitor Switch Troubleshooting Chart

G12227685

Courtesy of KIA MOTORS AMERICA, INC.
