Repair Procedures: Replacement

Shift lock solenoid replacement

1. Remove the floor console assembly.

   (Refer to Body - "FLOOR CONSOLE ")

2. Remove the shift lock solenoid (A) from the shift lever assembly.
   Fig 1: Removing Shift Lock Solenoid From Shift Lever Assembly

   Courtesy of KIA MOTORS AMERICA, INC.

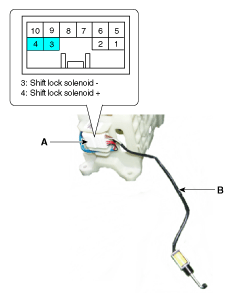

3. Disconnect the wiring (B) of shift lock solenoid from the main connector (A).
   Fig 2: Locating Main Connector And Wiring

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.
