Input And Output Diagram

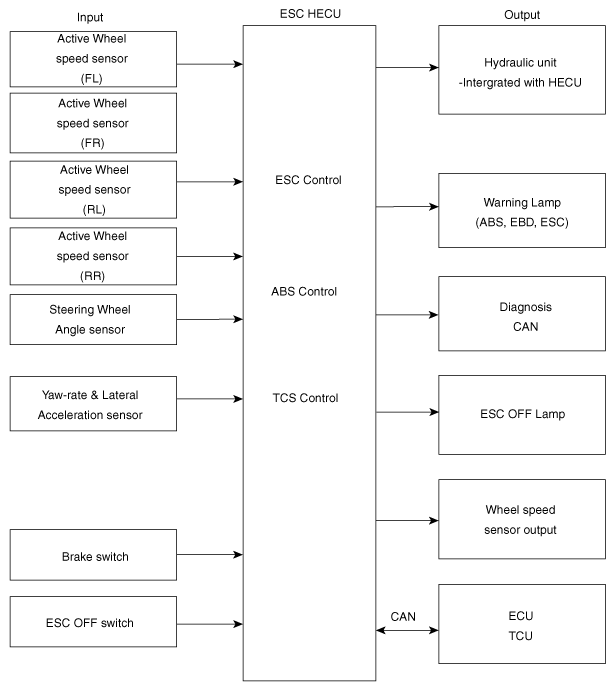

Fig 1: ESC Control System Input & Output Diagram
Courtesy of KIA MOTORS AMERICA, INC.
