Repair Procedures: Inspection

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the fuse box cover.
Remove the starter relay (A).

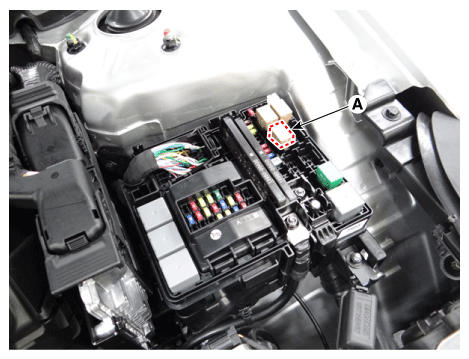

Fig 1: Locating Starter Relay
Courtesy of KIA MOTORS AMERICA, INC.

Check for continuity between the terminals (30 and 87) using an ohmmeter.

Terminal	Resistance	Measure
30 - 87	1MΩ or higher	If there is continuity between the terminals, replace the relay.

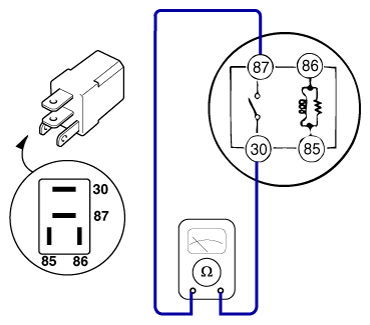

Fig 2: Check Continuity Between Terminals (30 & 87) Using Ohmmeter

Courtesy of KIA MOTORS AMERICA, INC.

Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).

Terminal	Resistance	Measure
30 - 87	1Ω or less	If there is no continuity between the terminals, replace the relay.

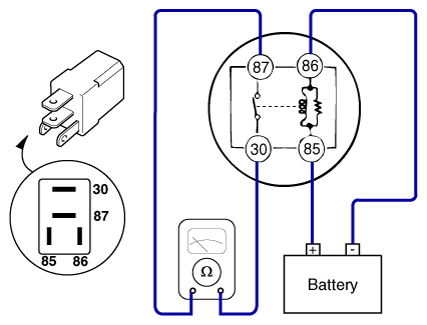

Fig 3: Apply 12V To Terminal 85 & Ground To Terminal 86

Courtesy of KIA MOTORS AMERICA, INC.
