Circuit Diagram: Notes

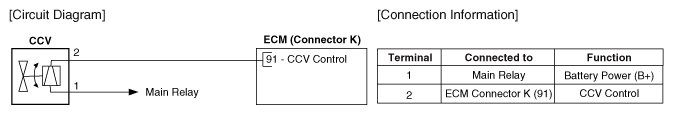

Fig 1: Canister Close Valve Circuit Diagram And Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
