[High Pressure Fuel Line]

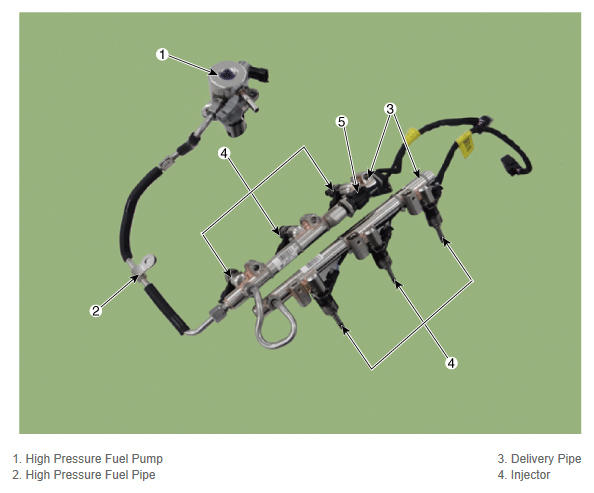

Fig 1: High Pressure Fuel Line Components Location
G12293590Courtesy of KIA MOTORS AMERICA, INC.
WARNING: Whenever the high pressure fuel pump, fuel pipe, delivery pipe, or injector is removed immediately after shutting off the engine, an injury may be caused by the release of highly pressurized fuel. Release the residual pressure in the high pressure fuel line by referring to the "Residual Fuel pressure release procedure" below before removing any high pressure fuel system components.
