Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the steering column upper and lower shroud panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Remove the multifunction switch.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")
Remove the key warning/immobilizer connector (A).
Insert key and turn it to ACC position.

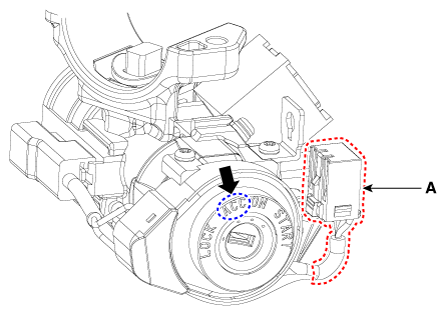

Fig 1: Locating Key Warning/Immobilizer Connector
Courtesy of KIA MOTORS AMERICA, INC.
Push the lock pin (A) with an awl.

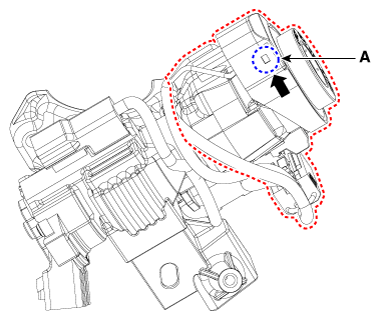

Fig 2: Push Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the key lock cylinder (A).
B : Key warning switch

C: Ignition switch connector

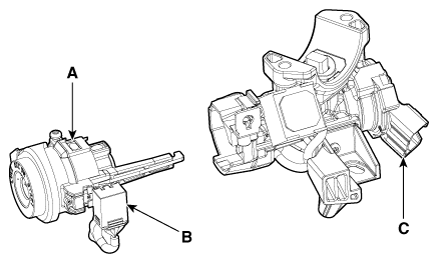

Fig 3: Remove Key Lock Cylinder
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the key interlock connector (A) and ignition switch connector (B).

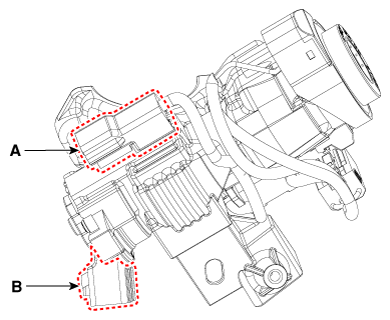

Fig 4: Locating Key Interlock Connector & Ignition Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition switch (B) after loosening the mounting bolts (A).

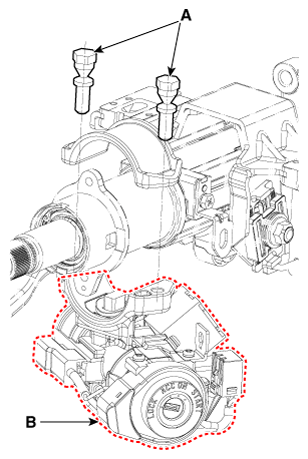

Fig 5: Remove Ignition Switch Mounting Bolts

Courtesy of KIA MOTORS AMERICA, INC.
