FOB Status Check

Connect the cable of KDS/GDS to the Data Link Connector in Driver Side Crash Pad Lower Panel.
After IGN ON, select the "FOB KEY STATUS INFO".

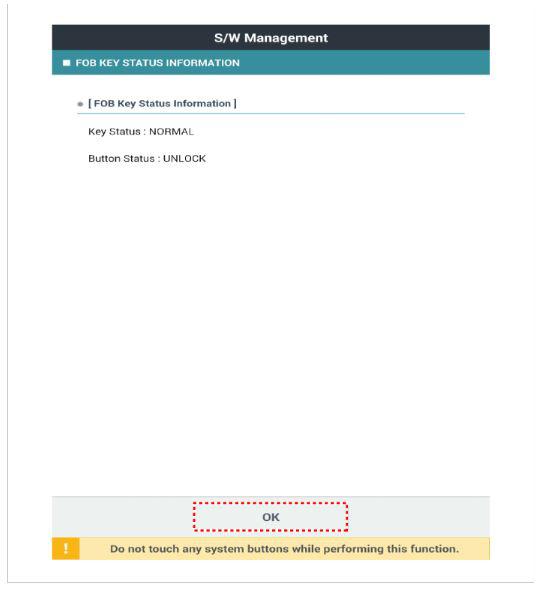

Fig 1: Scantool Display - FOB Key Status Information (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

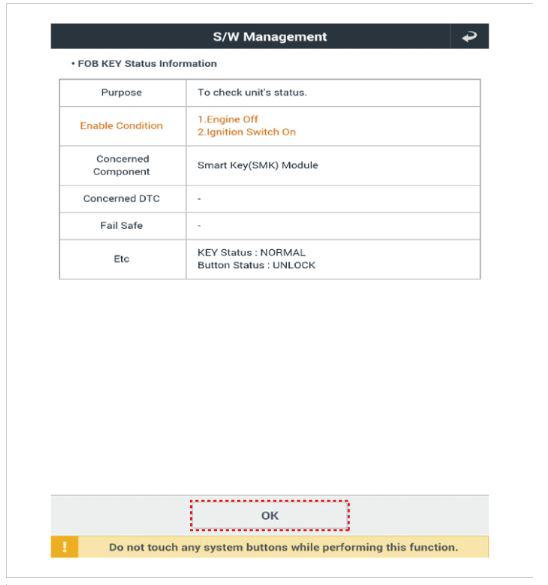

Fig 2: Scantool Display - FOB Key Status Information (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - FOB Key Status Information (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
