Neutralization Status Check

Connect the cable of KDS/GDS to the Data Link Connector in Driver Side Crash Pad Lower Panel.
After IGN ON, select the "Neutralization Mode".

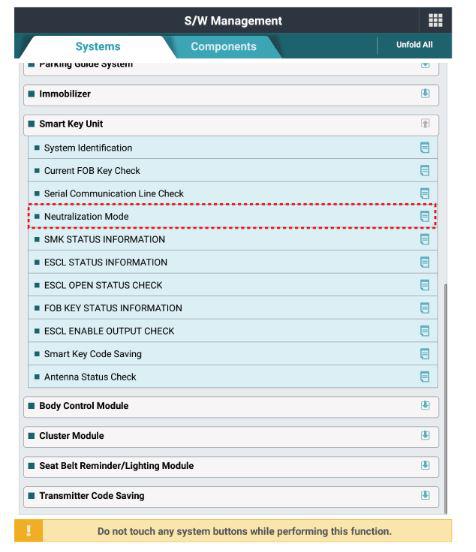

Fig 1: Scantool Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

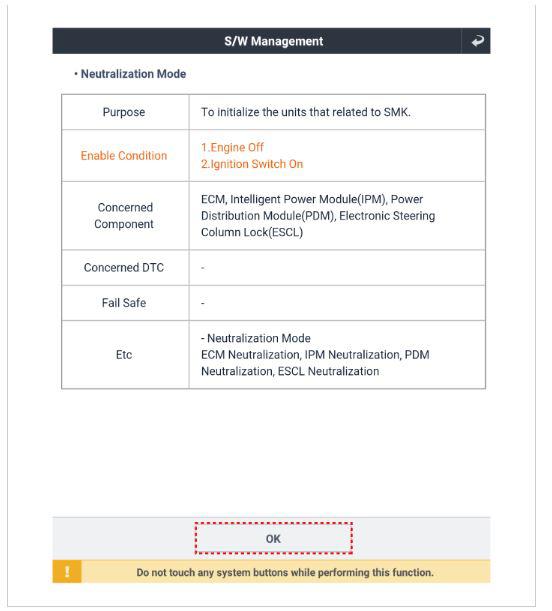

Fig 2: Scantool Display - Enable Condition

Courtesy of KIA MOTORS AMERICA, INC.

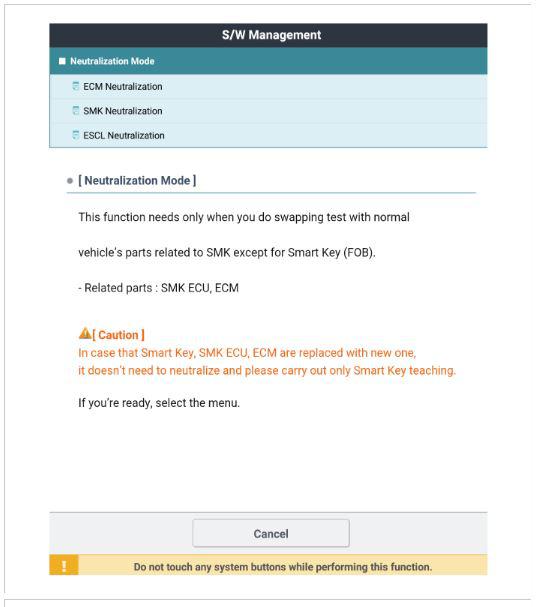

Fig 3: Scantool Display - SMK, ECM & ESCL Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

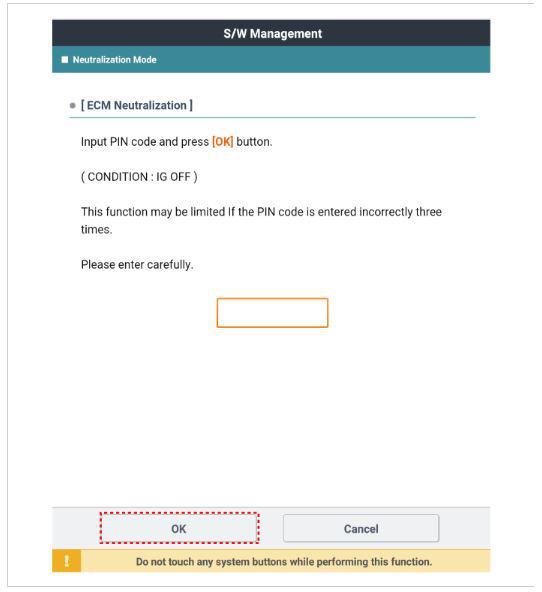

Fig 4: Scantool Display - ECM Neutralization - Pin Code Entry (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

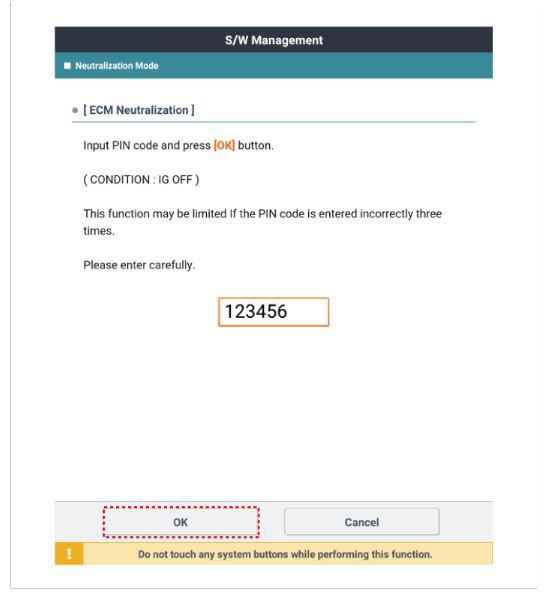

Fig 5: Scantool Display - ECM Neutralization - Pin Code Entry (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

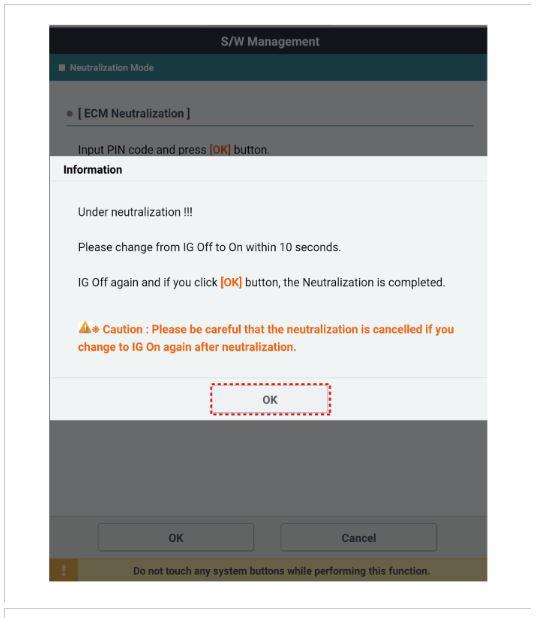

Fig 6: Scantool Display - Neutralization Information - IG OFF To ON

Courtesy of KIA MOTORS AMERICA, INC.

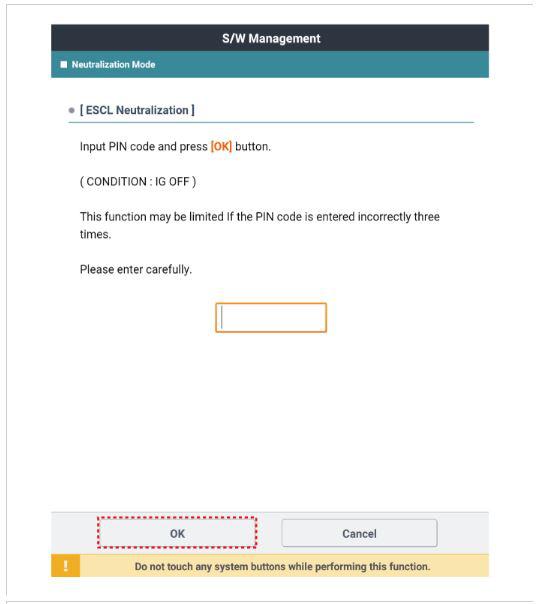

Fig 7: Scantool Display - ESCL Neutralization - Pin Code Entry (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

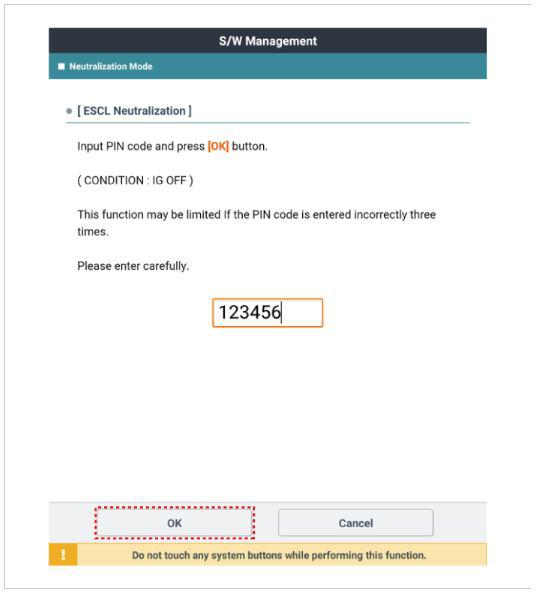

Fig 8: Scantool Display - ESCL Neutralization - Pin Code Entry (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

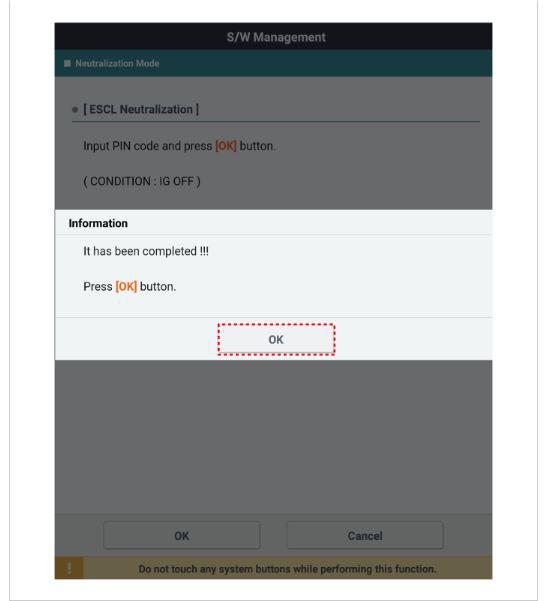

Fig 9: Scantool Display - ESCL Neutralization - Completed

Courtesy of KIA MOTORS AMERICA, INC.

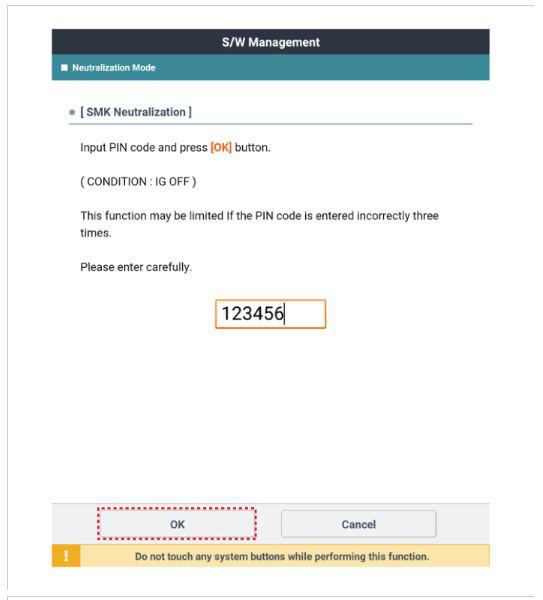

Fig 10: Scantool Display - SMK Neutralization - Pin Code Entry (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

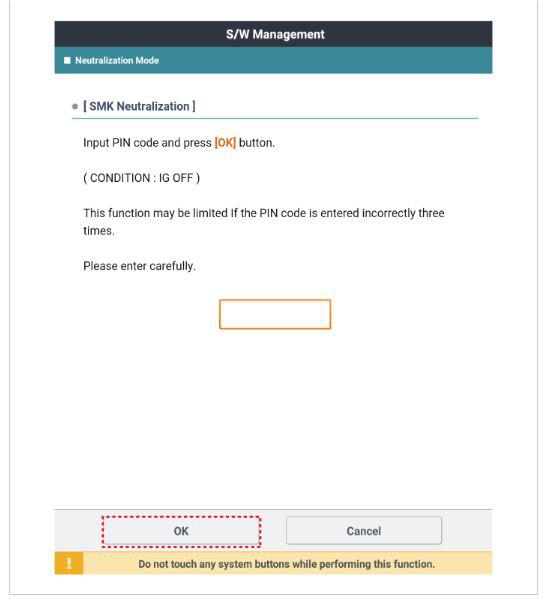

Fig 11: Scantool Display - SMK Neutralization - Pin Code Entry (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

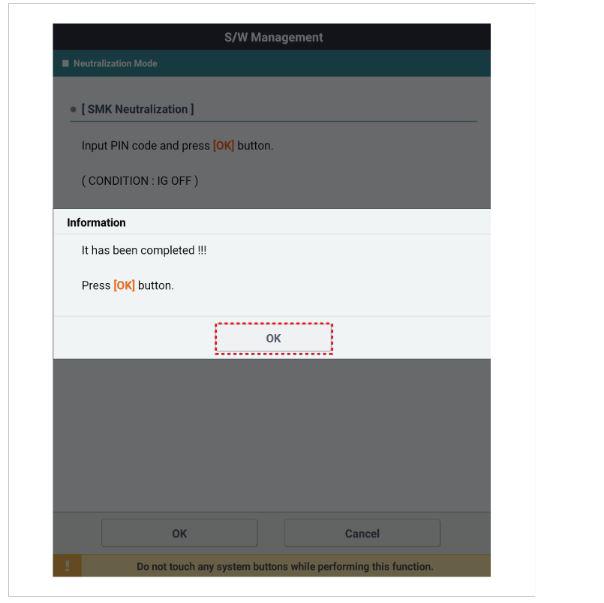

Fig 12: Scantool Display - SMK Neutralization - Completed

Courtesy of KIA MOTORS AMERICA, INC.
