Components And Components Location: Component

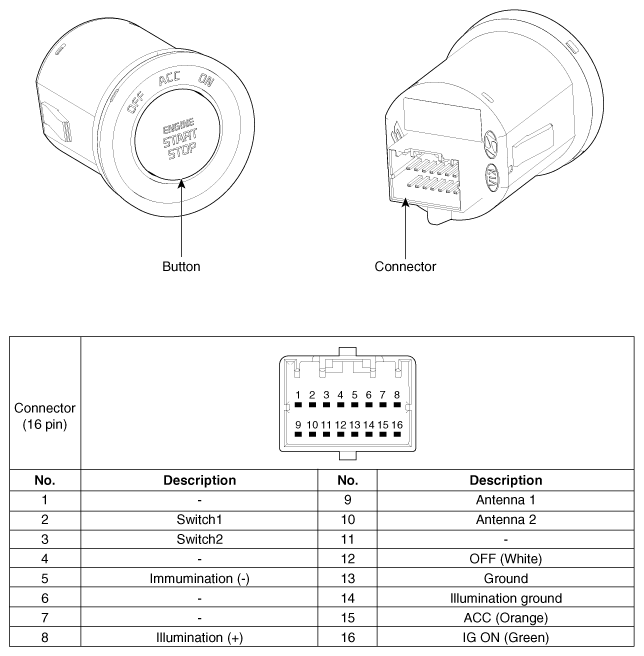

Fig 1: Start/Stop Button Components Location & Connector End View
G12166597Courtesy of KIA MOTORS AMERICA, INC.
