Accelerator Position Sensor (APS): Specifications: Specification

ACCELERATOR POSITION SENSOR (APS) SPECIFICATION

Accelerator Position	Output Voltage (V) [Vref = 5V]
	APS1	APS2
C.T	0.7 - 0.8	0.29 - 0.46
W.O.T	3.85 - 4.35	1.93 - 2.18

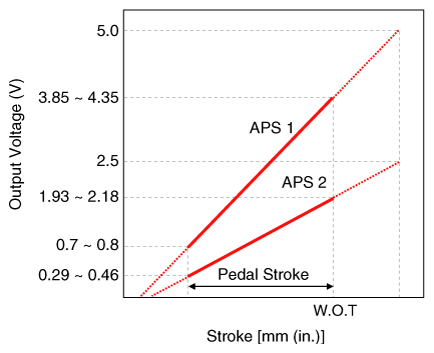

Fig 1: Accelerator Position Sensor Output Voltage Graph

Courtesy of KIA MOTORS AMERICA, INC.
