Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

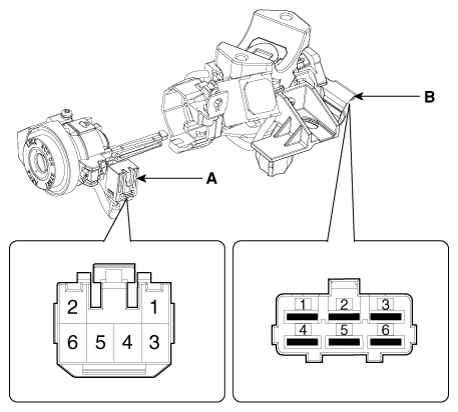

    Fig 1: Disconnecting Ignition Switch Connector And Key Warning Switch Connector From Steering Column
    G12166603Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

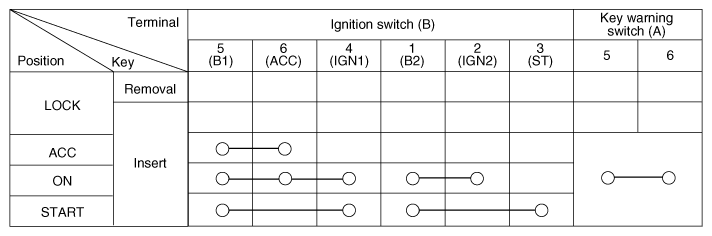

    Fig 2: Ignition Switch Connector Terminals Continuity Chart
    G12166604Courtesy of KIA MOTORS AMERICA, INC.
