Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the main connector (A).

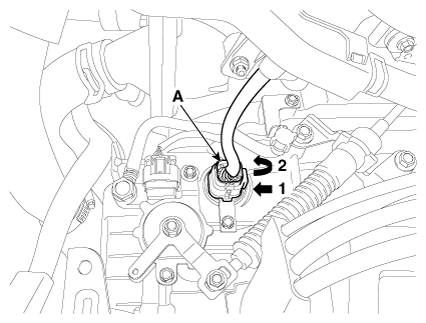

    Fig 1: Disconnecting Main Connector
    G12163245Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between + terminal (9) and - terminal (13).
Fig 2: Oil Temperature Sensor Connector Terminals
G12163246Courtesy of KIA MOTORS AMERICA, INC.
