Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Disconnect the connector (A), and then remove the sensor (B).

   Heated Oxygen Sensor Mounting [Bank 1/Sensor1]:

   39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

   Heated Oxygen Sensor Mounting [Bank 1/Sensor2]:  39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

   NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.

[Bank 1/Sensor 1]

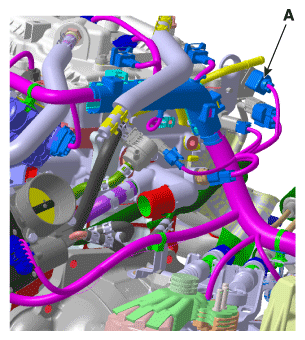

Fig 1: Disconnecting Connector (Bank 1/Sensor 1)

Courtesy of KIA MOTORS AMERICA, INC.

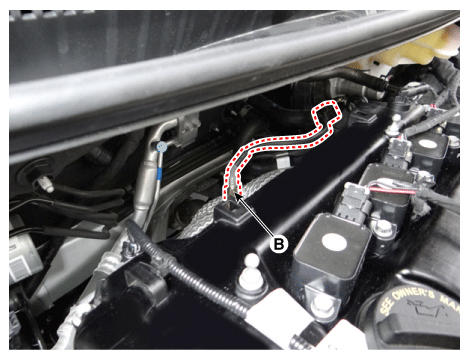

Fig 2: Removing Sensor (Bank 1/Sensor 1)

Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

Fig 3: Disconnecting Connector (Bank 1/Sensor 2)

Courtesy of KIA MOTORS AMERICA, INC.

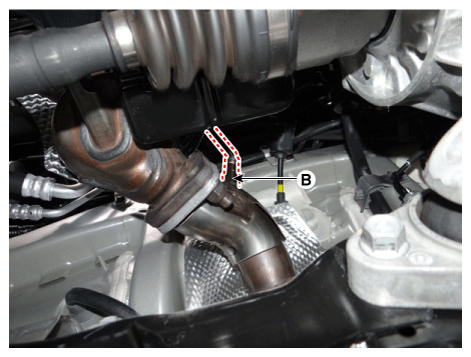

Fig 4: Removing Sensor (Bank 1/Sensor 2)

Courtesy of KIA MOTORS AMERICA, INC.
