Repair Procedures: Removal

Disconnect the battery negative terminal.
Remove the engine cover.
Disconnect the ignition coil connectors (A).

Fig 1: Locating Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

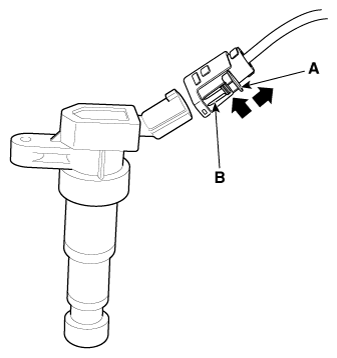

- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
Fig 2: Pulling Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).
Ignition coil mounting bolts:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

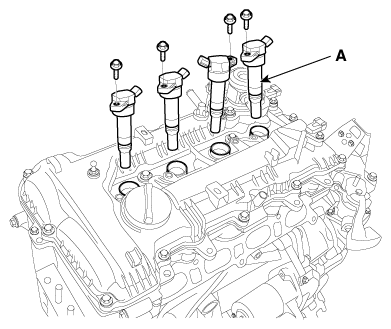

Fig 3: Removing Ignition Coil With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
