Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

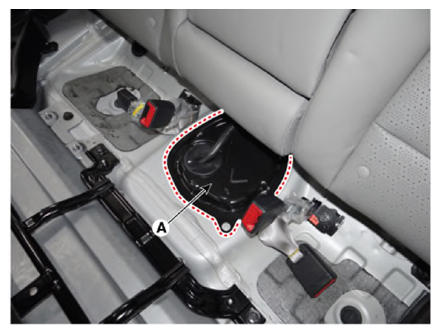

  3. Remove the fuel pump service cover (A).
    G12696167Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

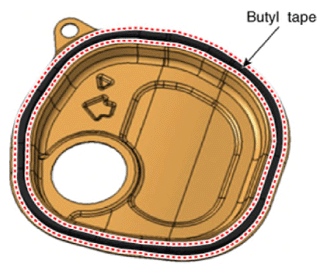

    • When reinstalling a protective cover for a fuel pump, remove the existing butyl tape and apply a new one.
    • Before assembling the protective cover, ensure that the temperature of the butyl is about 30°C using a hair dryer or a heat gun.
    G12696168Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

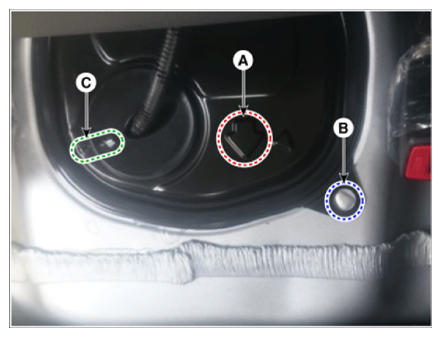

    • When installing the protective cover for the fuel pump, pay attention to the installation direction of the grommet and the protective cover.
    • The arrow (A) should be in the forward direction of the car.
    • Align the bulging part of the vehicle body (B) with the hole of the protective cover.
    • Align the bulging part of the grommet (C) with the bulging part of the protective cover.
    G12696169Courtesy of KIA MOTORS AMERICA, INC.

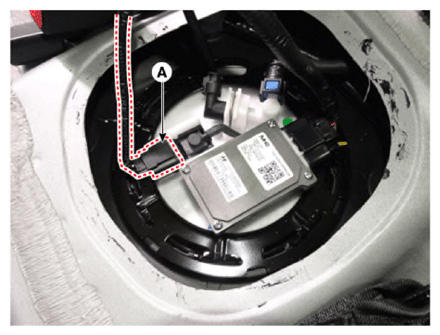

  4. Disconnect the fuel tank pressure sensor connector (A).
    G12696170Courtesy of KIA MOTORS AMERICA, INC.

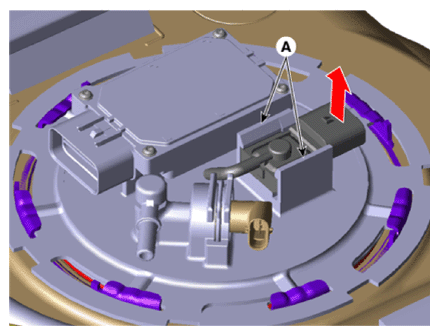

  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G12696171Courtesy of KIA MOTORS AMERICA, INC.
