Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - " CRASH PAD LOWER PANEL ")
Remove the steering column upper and lower shrouds after loosening the screws.
(Refer to Body - " STEERING COLUMN SHROUD PANEL ")
Remove the multifunction switch.
(Refer to Body Electrical System - " MULTIFUNCTION SWITCH ")

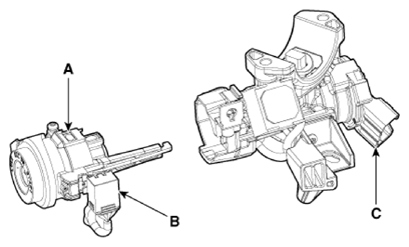

Remove the ignition switch connector (A) and key warning/immobilizer connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

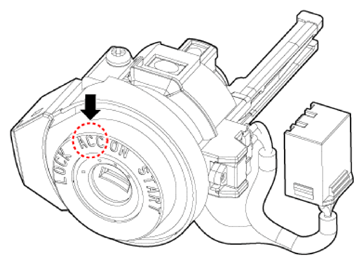

Insert key and turn it to ACC position.

Courtesy of KIA MOTORS AMERICA, INC.

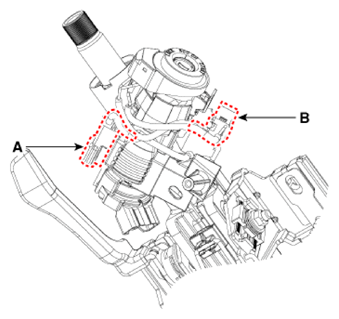

Pushing lock pin (A) with the awl.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the key lock cylinder (A).
B: Key warning switch

C: Ignition switch connector

Courtesy of KIA MOTORS AMERICA, INC.

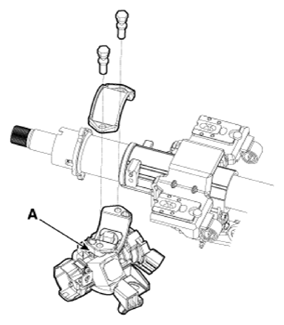

Remove the ignition switch (A) after loosening the mounting bolts.
